Product group

Manifolds & Flow Components

Manifolds, valves and filtration components for coolant distribution and flow management within equipment and rack loops.

Explore the rangePrepare an enquiry
Lee 558 LC high-flow press-in check valve; manufacturer product photograph.
Representative component · configuration-specific

Narrow your selection

Explore product families.

Component selection

All Product drafts

52 results
Private preview · candidate records

52 local draft records. Includes unfinished records and Family overviews. Draft · Noindex. Reference configurations are not approved stock. Image public-use review remains separate.

Show content-ready drafts
BEEHE FND red-handle 90-degree hose-barb valve-half variant, manufacturer rendering.

LCP-000106

90° Hose-Barb Interlock Valve Half — BEEHE FND Reference

A single FND valve half with a 90-degree barbed hose outlet, supplied as an interface choice for a matched interlocking pair. The…

End connection
90° elbow hose-barb end variants are separately listed for FND25 and FND40, with blue…
Material seal
FND series lists SUS304 body and EPDM seal; actual barb and hose fit require…
View specifications
SMC PF3WB integrated basic-type water flow-switch manifold, manufacturer catalogue photograph.

LCP-000099

Basic Integrated Water Flow-Switch Manifold — SMC PF3WB Reference

A supply-and-return water manifold in one basic-layout assembly, with selectable branch flow-switch and valve stations. The photographed configuration represents the PF3WB series,…

Rated flow options
0.5–4, 2–16 or 5–40 L/min per selected flow-switch unit; not the assembled manifold total…
Port size options
1 in main pipe; attachment ports 3/8, 1/2 or 3/4 in, subject to selected…
View specifications

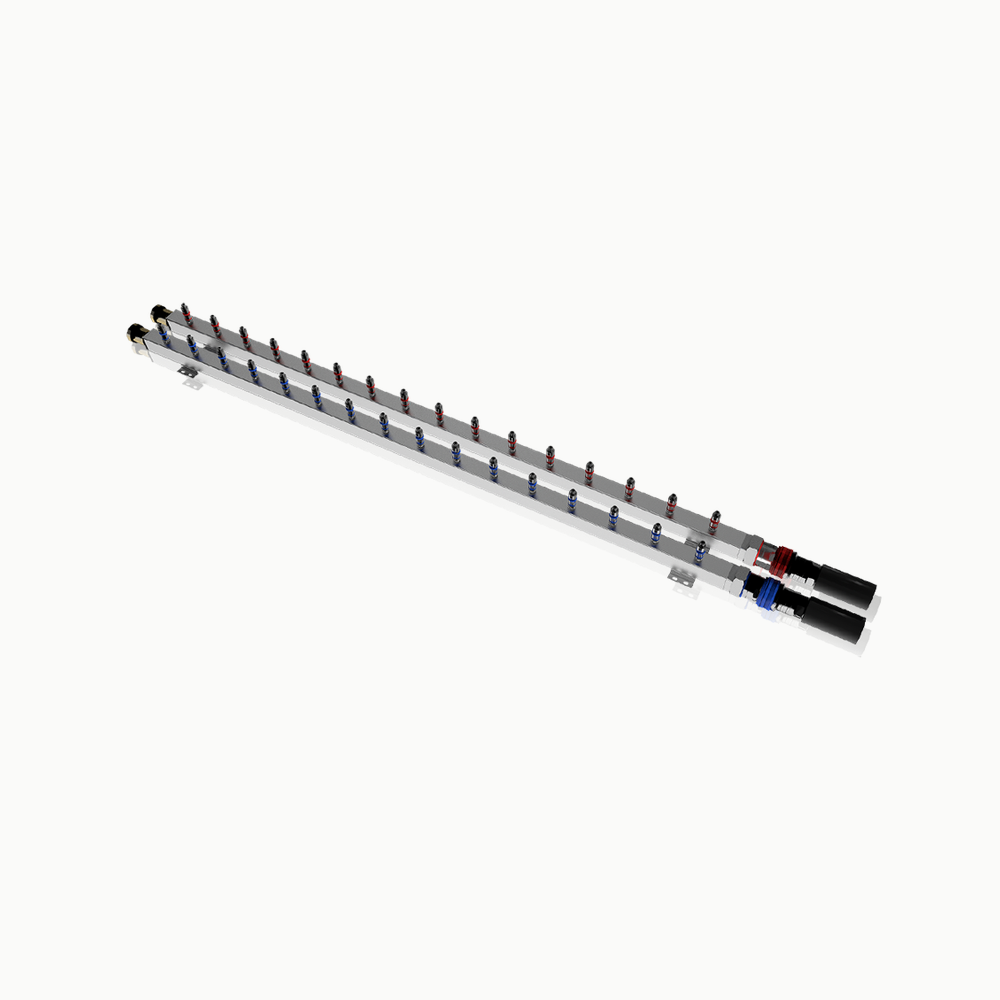

Haiwu paired double-row multi-plug rack manifold — manufacturer product rendering; exact connector and dimensions are project-specific.

LCP-000054

Double-Row Multi-Plug Rack Manifold — Haiwu Reference

A pictured pair of long rack-distribution bars with repeated connectors. Haiwu describes double-row welded manifolds for multi-plug liquid-cooling connections.

Row options
Single-row pipe type for manual plug-in and double-row pipe type for multi-plug connection
Construction
Double-row pipes described as welded
View specifications

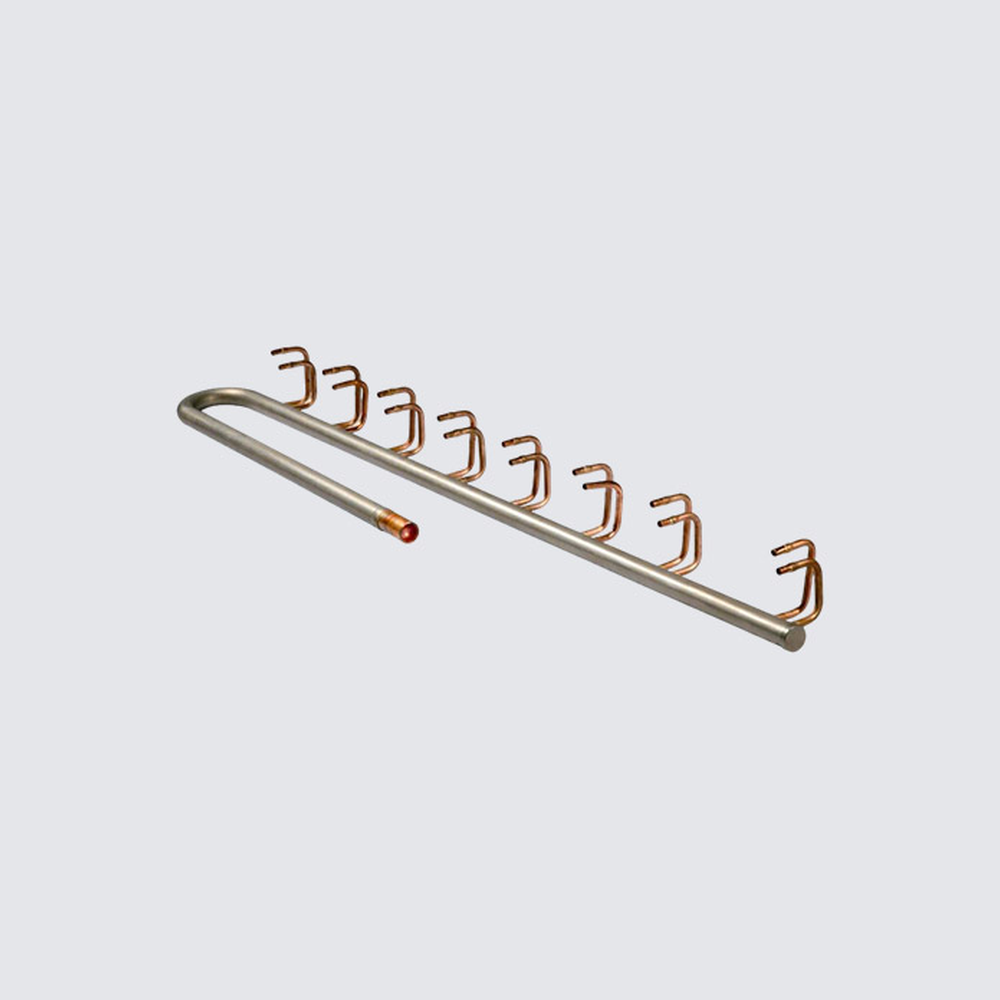

Deya multi-outlet metal branch header with formed small-bore takeoffs, shown as a custom distribution example.

LCP-000071

Drawing-Defined Multi-Outlet Branch Header — Deya Reference

A single long metal header with a row of individually formed takeoffs, shown in a clear standalone manufacturer's photograph. It is a…

Fluid distribution function
A custom stainless header distributes fluid to, or collects fluid from, multiple branches; the…
Custom order basis
Custom stainless headers can be made from a customer's drawing or physical sample
View specifications

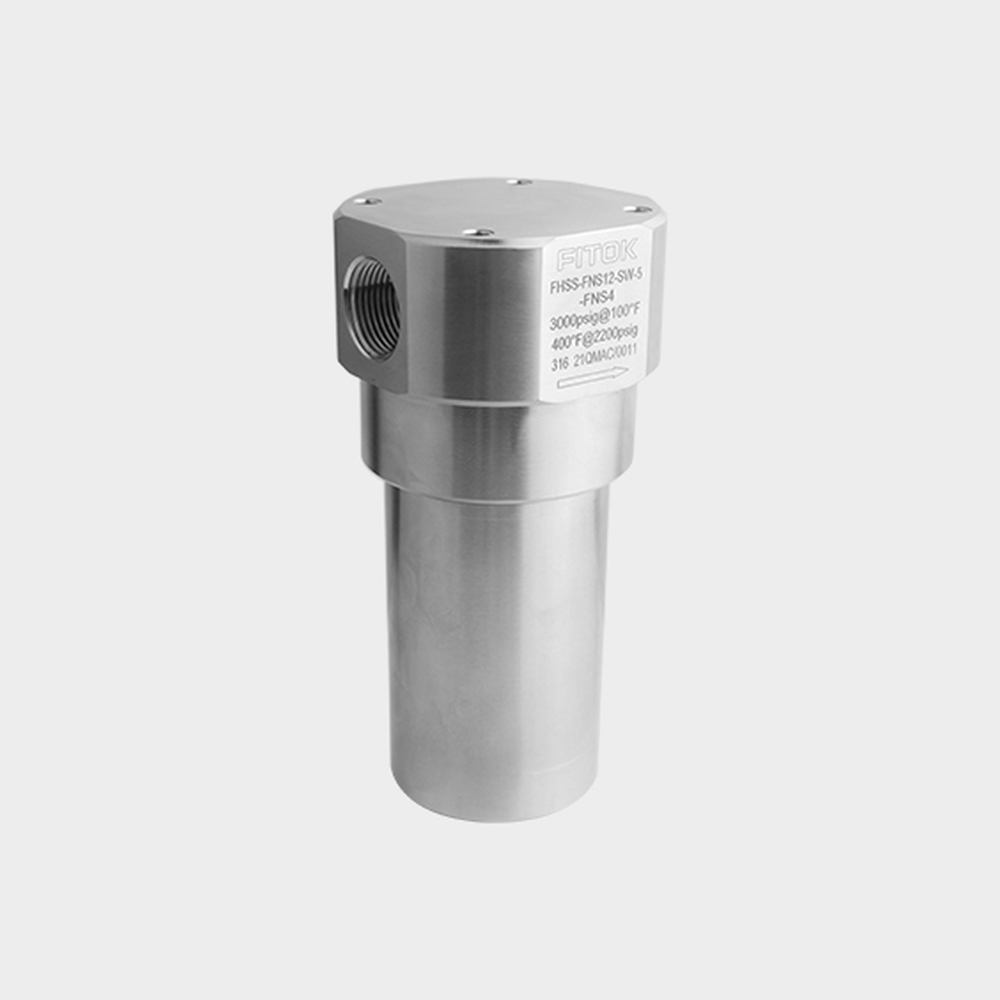

FITOK FH high-capacity bypass filter series, official standalone product banner; pictured suffix is not treated as a complete ordered configuration.

LCP-000068

High-Capacity Bypass Filter — FITOK FH Series Reference

A larger cylindrical bypass filter for higher-flow liquid-line layouts, with a clear standalone official product image. The FH catalogue distinguishes 4H and…

Listed wetted materials
F316 stainless head, 316 stainless cylinder/element; FKM default O-ring with other listed elastomer options
Published series pressure
Up to 345 bar (5000 psig) maker-published FH series pressure
View specifications

Specify with confidence

The details that shape your selection.

Prepare the port map, branch requirements, flow conditions and any valves, filters or sensors included in the assembly.

  • Function and loop position
  • Interfaces, drawing revisions and envelope
  • Coolant, materials and seals
  • Temperature, pressure and flow conditions
  • Testing and documentation
  • Quantities and delivery requirements

System and selection context

Manifolds distribute branches; valves control or isolate flow; filters address a stated particle-control objective. The group represents components inside a buyer-defined loop, not complete system performance.

Inputs for review

Start with a supply and return map, branch duties, mounting and service access. Specify each attached device and the operating point used to judge flow, pressure drop and tests.

Information to prepare

  • Prepare the port map, branch requirements, flow conditions and any valves, filters or sensors included in the assembly.

Configuration and quotation

Include the drawing or specification revision and identify any requirements that are still to be confirmed. Available configurations, testing and documentation are confirmed with quotation.

Documented reference configurations & supporting imagery

Local editorial preview

Related component references

Manufacturer examples retain their model and conditions. These references describe source products, not approved stock or supply. Images are pending final selection and rights review.

Rack Manifolds & Distribution Assemblies

107 documented parameter entries. Open the family to review model scope, options and conditions.

Xindaaitech manifold assembly example — workshop-style product photograph showing multiple distribution tubes and support brackets; not a standard port-count or dimension guarantee.
Xindaaitech manifold assembly example — workshop-style product photograph showing multiple distribution tubes and support brackets; not a standard port-count or dimension guarantee.LCIMG-000086 · Local reference image

Valves

1 documented parameter entries. Open the family to review model scope, options and conditions.

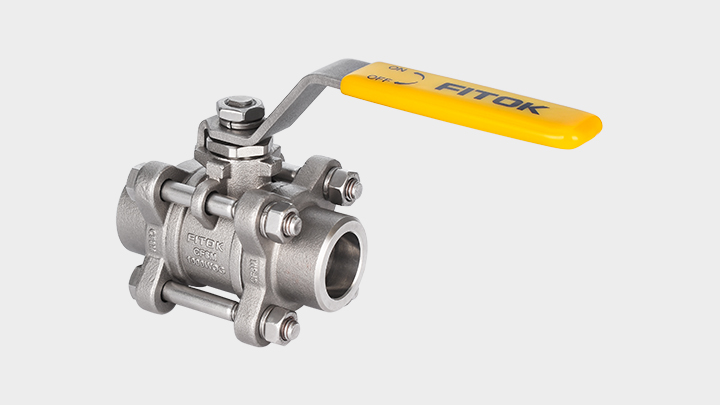

FITOK BG three-piece ball valve — lever, split body and end connections; isolation configuration example, not a coolant-compatibility approval.
FITOK BG three-piece ball valve — lever, split body and end connections; isolation configuration example, not a coolant-compatibility approval.LCIMG-000165 · Local reference image

Check Valves

62 documented parameter entries. Open the family to review model scope, options and conditions.

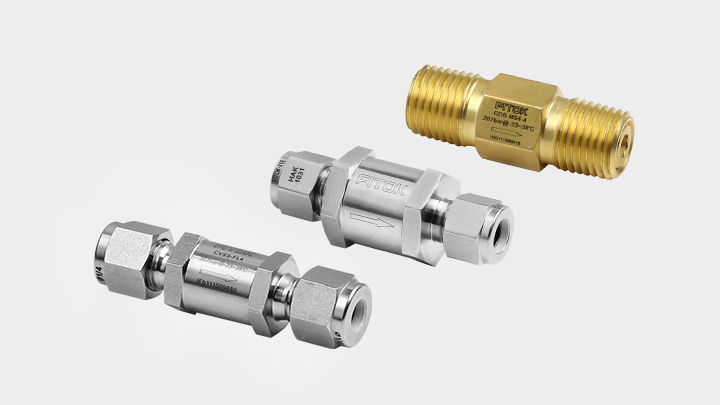

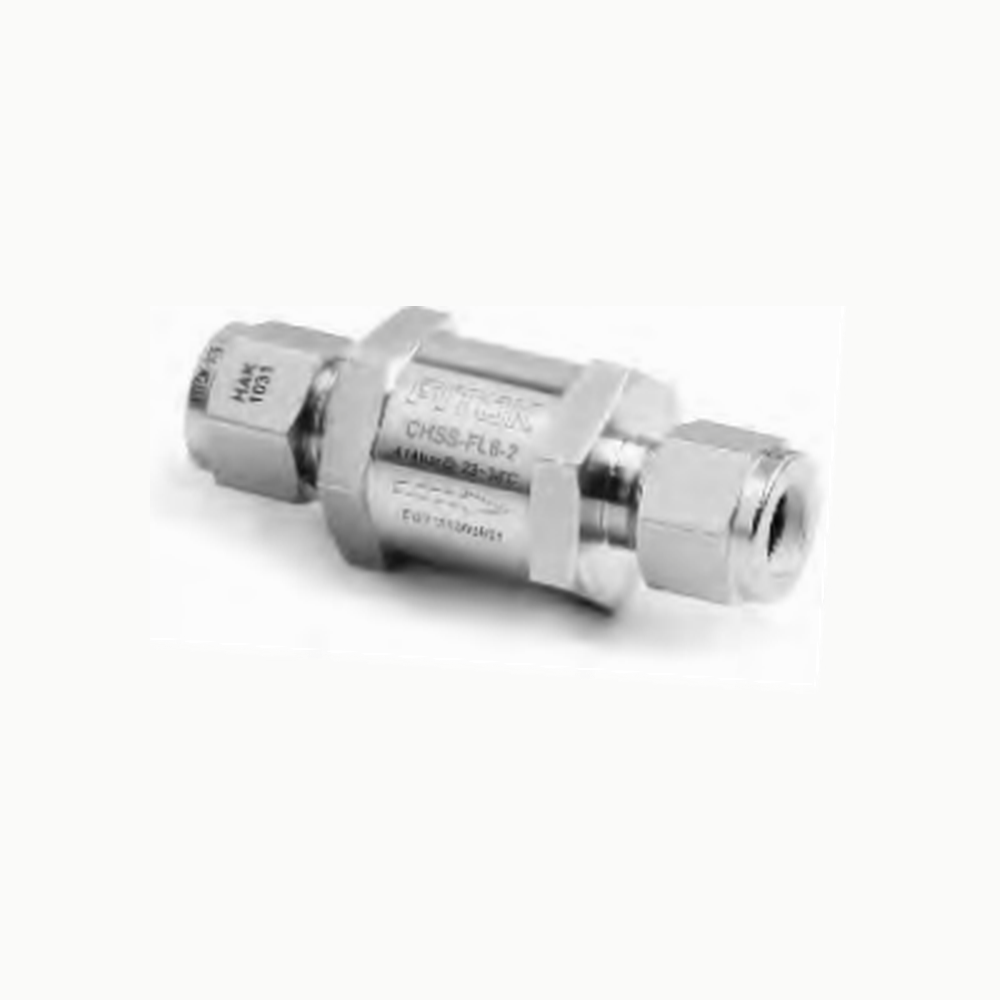

FITOK CV / CH / CO family reference — different check-valve bodies and end connections; not interchangeable configurations.
FITOK CV / CH / CO family reference — different check-valve bodies and end connections; not interchangeable configurations.LCIMG-000114 · Local reference image

Flow-Control Valves

24 documented parameter entries. Open the family to review model scope, options and conditions.

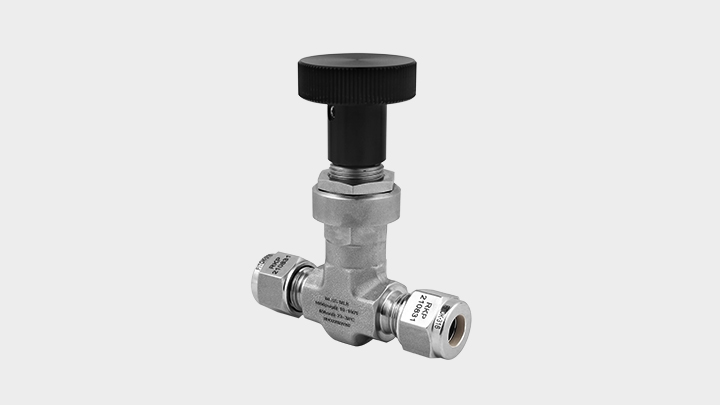

FITOK ML metering valve — round adjustment handle and tube-fitting ends; exact order code determines material and configuration.
FITOK ML metering valve — round adjustment handle and tube-fitting ends; exact order code determines material and configuration.LCIMG-000166 · Local reference image

Isolation Valves

58 documented parameter entries. Open the family to review model scope, options and conditions.

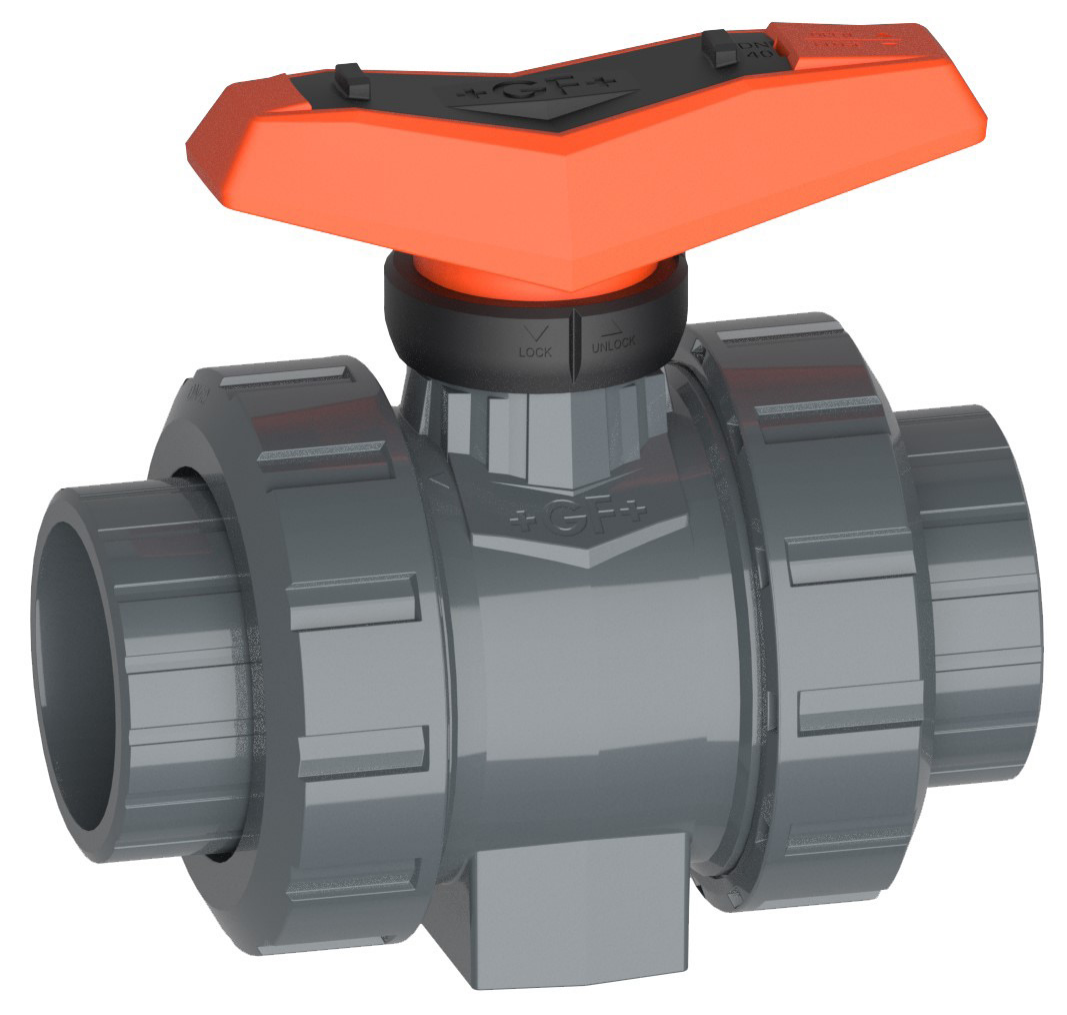

GF Type 546 Pro manual double-union ball valve — thermoplastic series reference; not the Watts W1000 configuration. Material and connections must match the selected order code.
GF Type 546 Pro manual double-union ball valve — thermoplastic series reference; not the Watts W1000 configuration. Material and connections must match the selected order code.LCIMG-000052 · Local reference image

Filters & Strainers

76 documented parameter entries. Open the family to review model scope, options and conditions.

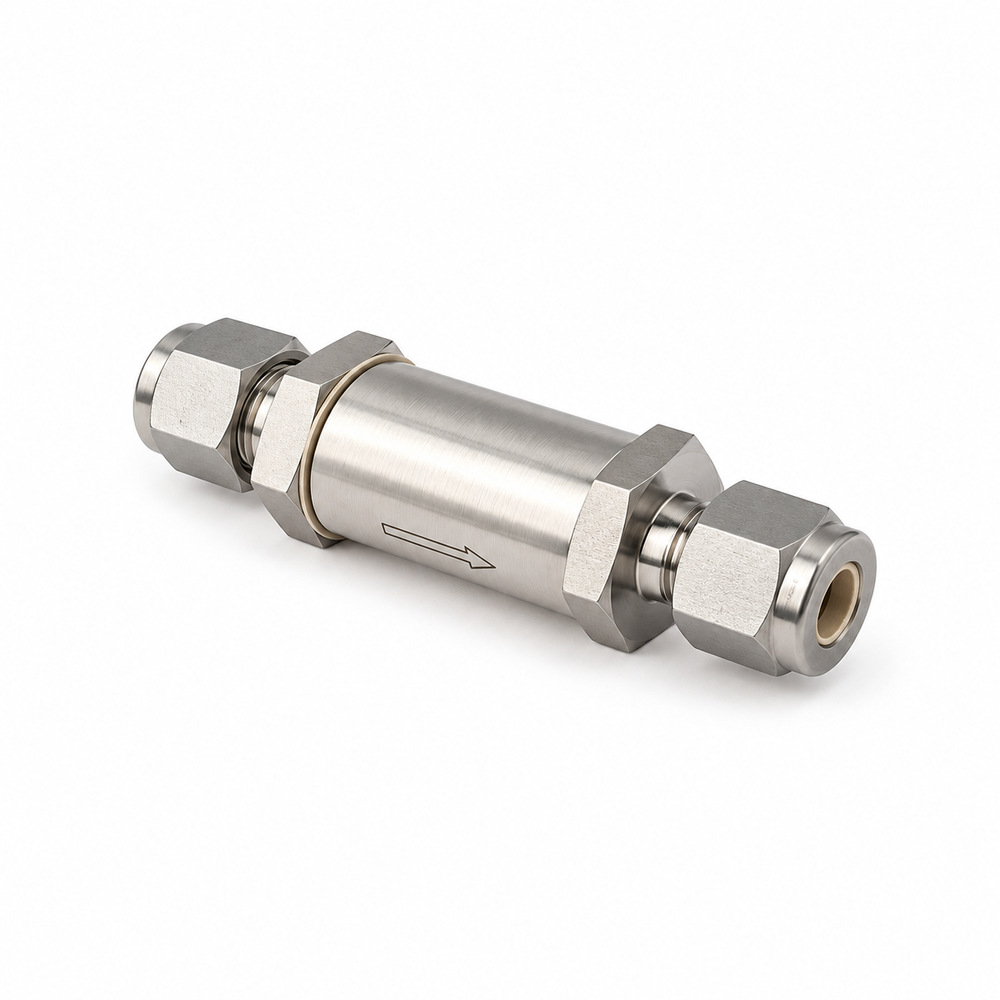

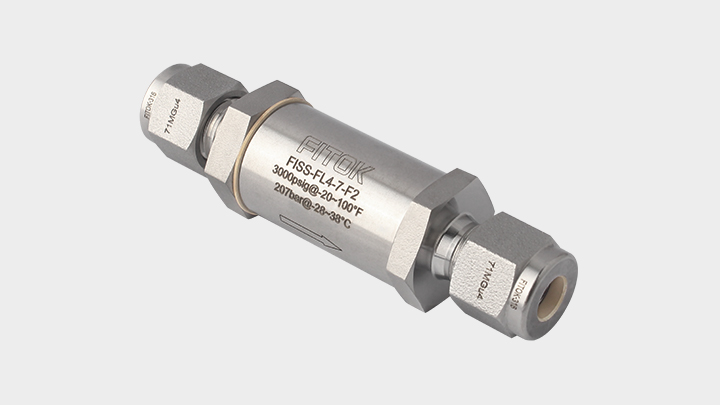

FITOK FI inline filter reference — tube-fitting ends and flow-direction marking; filter rating must match the specific order code.
FITOK FI inline filter reference — tube-fitting ends and flow-direction marking; filter rating must match the specific order code.LCIMG-000115 · Local reference image
