Product family
Inline particle-control components selected around rating, pressure drop, and service requirements.

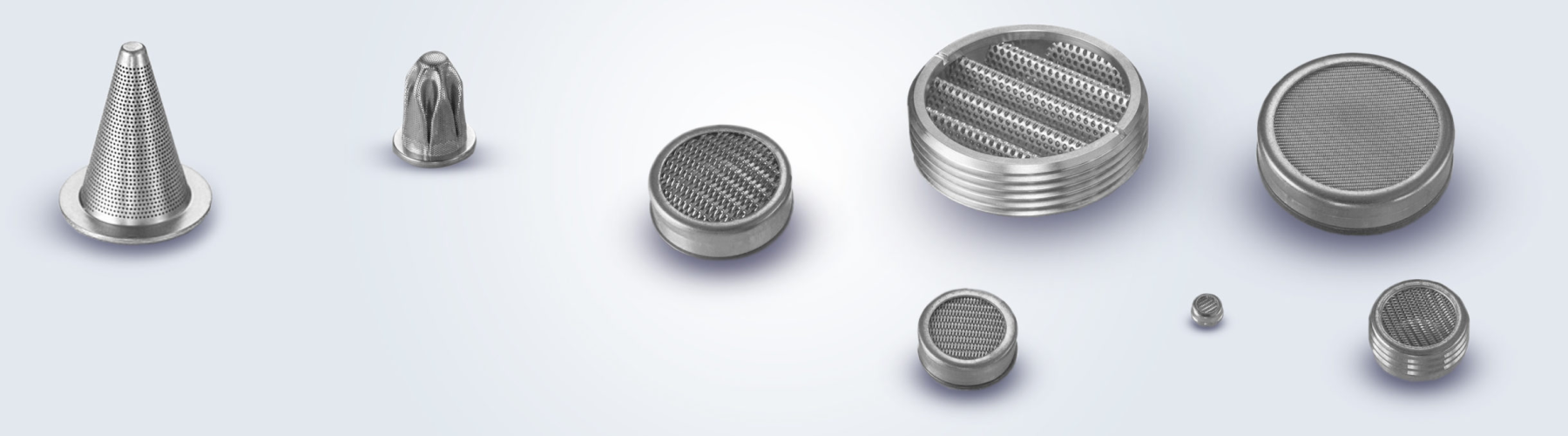

Component selection
14 local draft records. Includes unfinished records and Family overviews. Draft · Noindex. Reference configurations are not approved stock. Image public-use review remains separate.

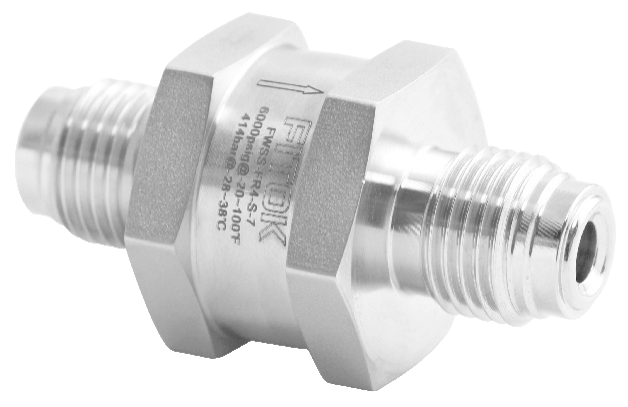

Show content-ready draftsLCP-000028
A separately pictured FW-series welded inline filter with opposed male-thread ends; manufacturer evidence distinguishes its fixed element, back-flush boundary and ordering choices…
LCP-000087
A compact woven-wire last-chance screen retained by its locking end in a metal housing. The photographed BR range lists 11.93 mm body…
LCP-000027
A single pictured FI-series inline filter with straight-through tube-fitting geometry; the catalog documents separate body, element and filter-area choices rather than one…
LCP-000089
A woven-wire screen cartridge for a flat-bottom hole with a separate retention feature. The 10 mm reference lists 9.93 mm body diameter…
LCP-000090

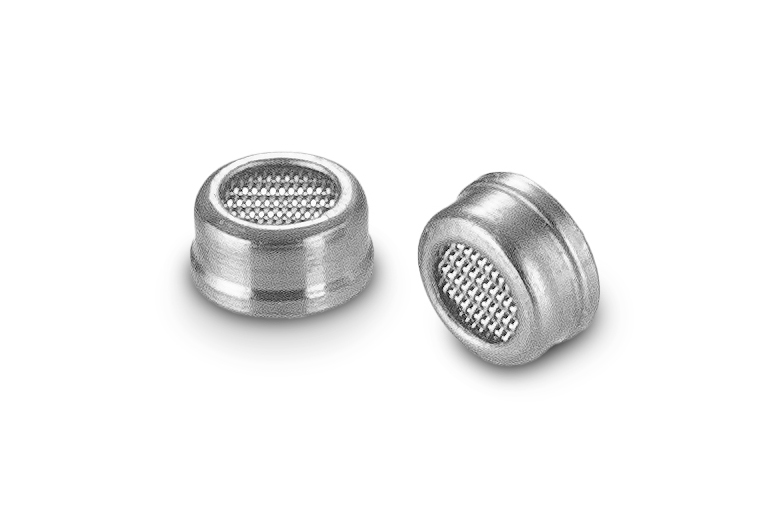

A very small plastic-housing press-in screen for finer 4–40 µm selection, distinct in filtration range and cavity scale from the standard 8…

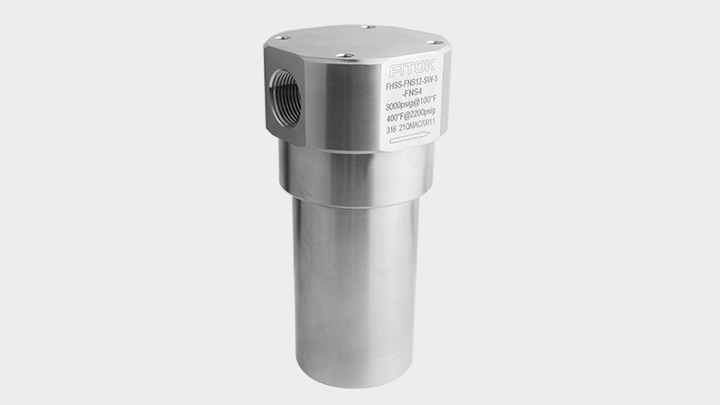

LCP-000068
A larger cylindrical bypass filter for higher-flow liquid-line layouts, with a clear standalone official product image. The FH catalogue distinguishes 4H and…
Component overview
A candidate family page for particle-control and service requirements.
LCP-000091

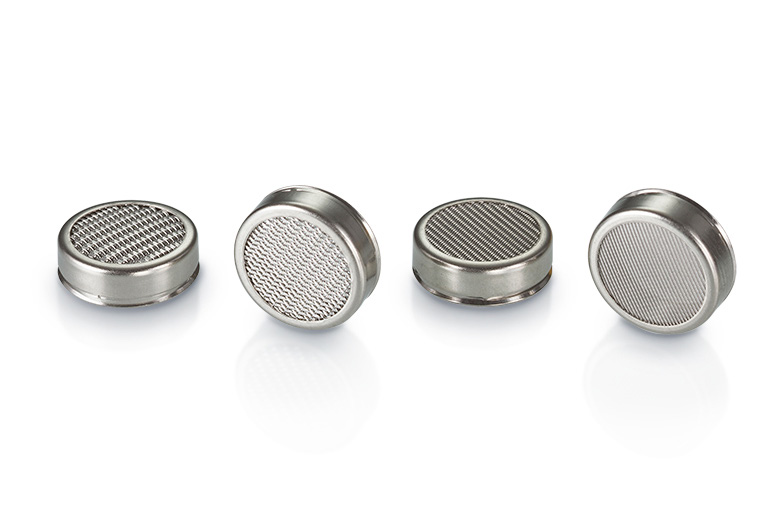

A locking-end woven-wire insert for direct installation in a metal housing, distinct from the plastic press-in and customer-retained cartridges. The 10 mm…

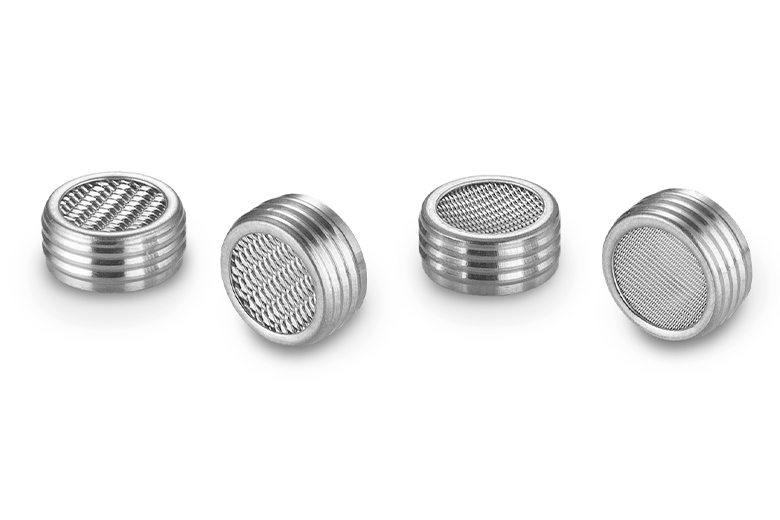

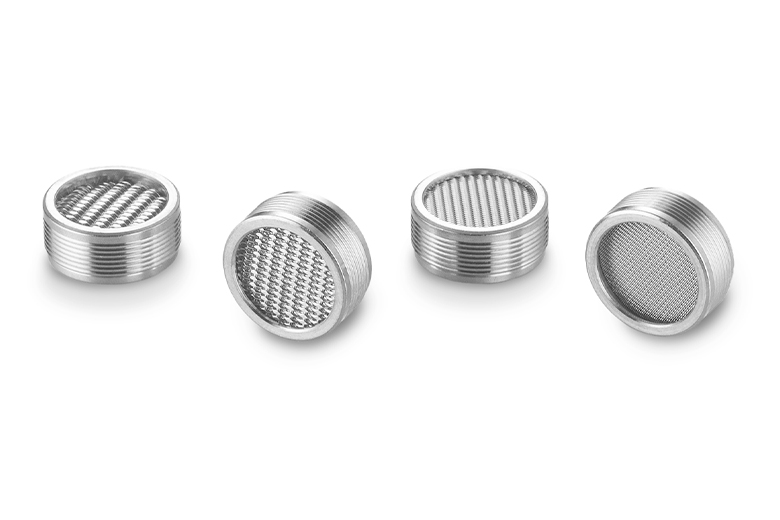

LCP-000088

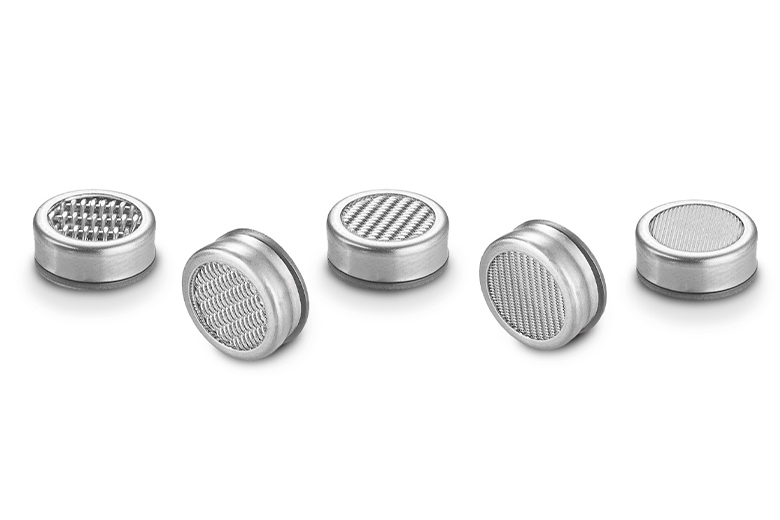

A woven-wire screen pressed directly into a plastic housing or fitting. The pictured 8 mm family lists a 7.92 mm body diameter…
LCP-000069

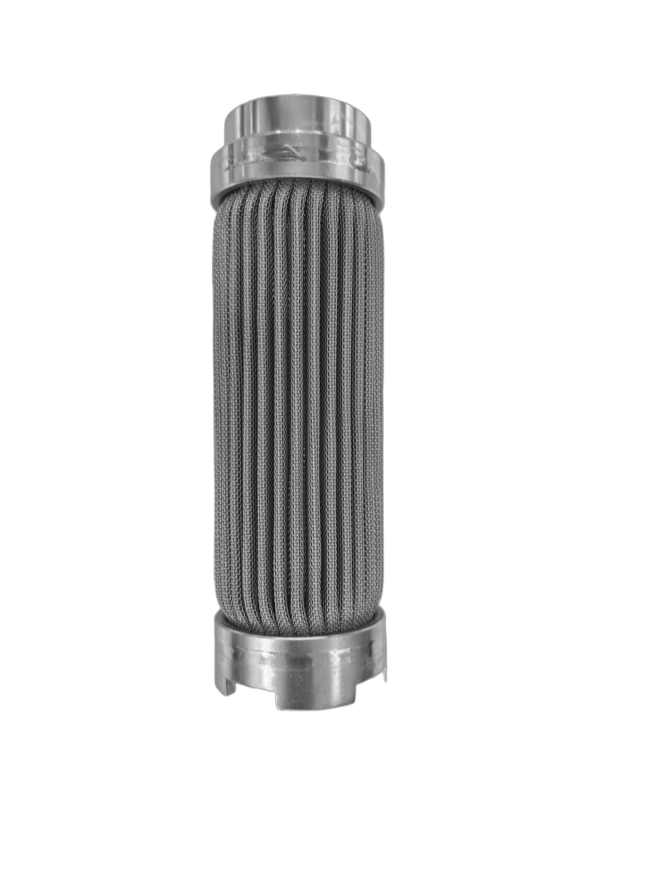

A removable pleated metal-mesh element for an FH high-capacity filter housing. Its independent catalogue photograph shows the entire cylindrical component; pore grade…

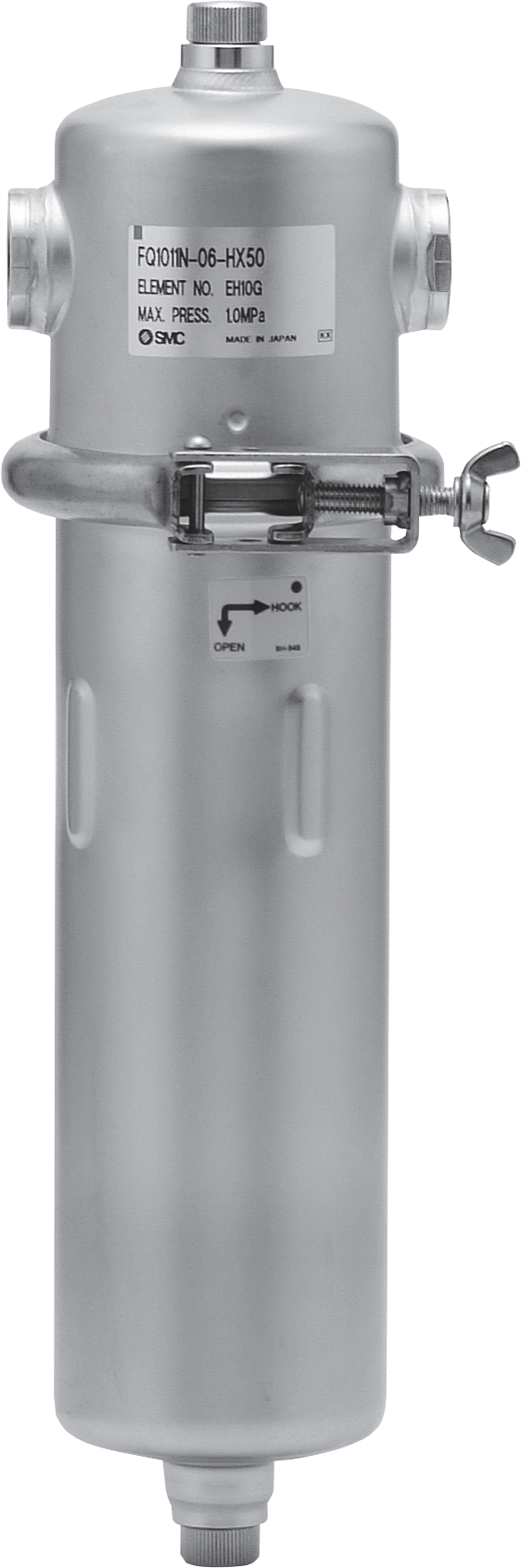

LCP-000078
An exact pictured quick-change filter configuration with SUS304 housing, Rc3/4 ports, NBR housing seal and a nominal 0.5 µm cotton-fiber element. The…
LCP-000004
A tee-body fluid filter with a serviceable element chamber, documented sintered and mesh element choices, and a nominal pore rating that must…

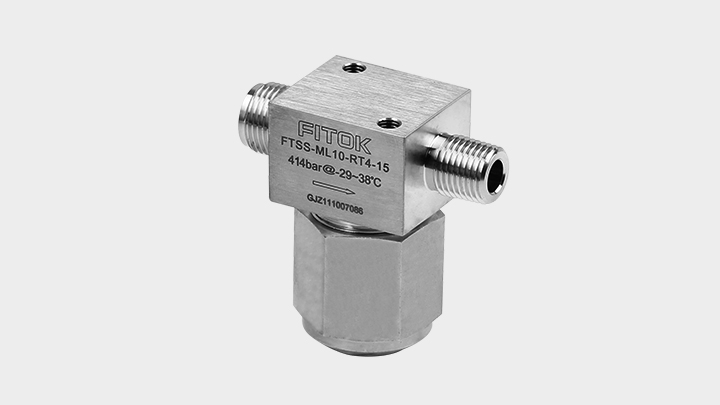

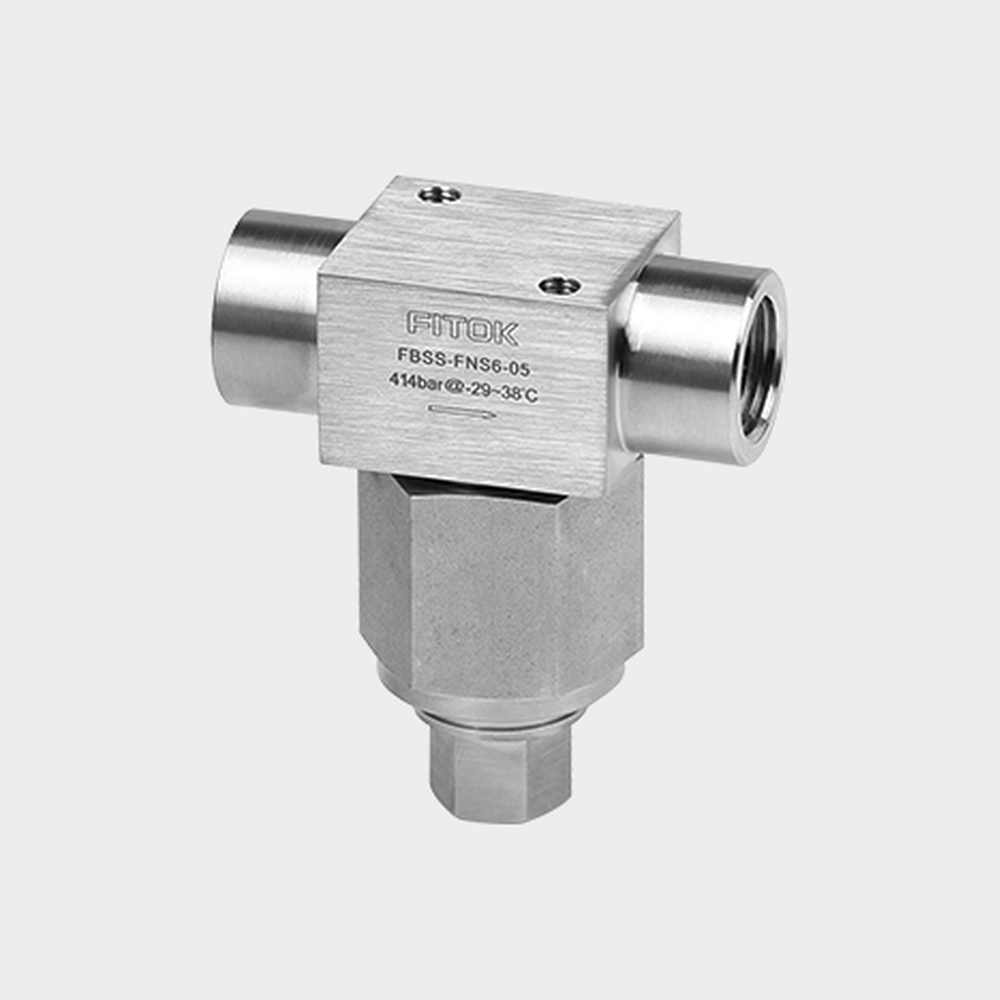

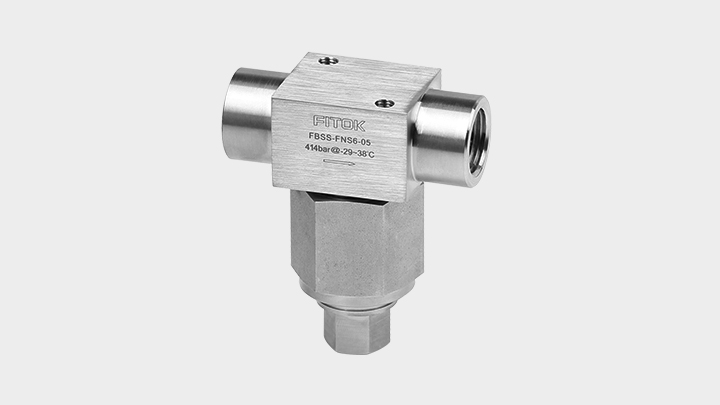

LCP-000067
A T-shaped bypass filter with two line ports and a lower element/service branch. The official standalone product photograph and catalogue establish the…

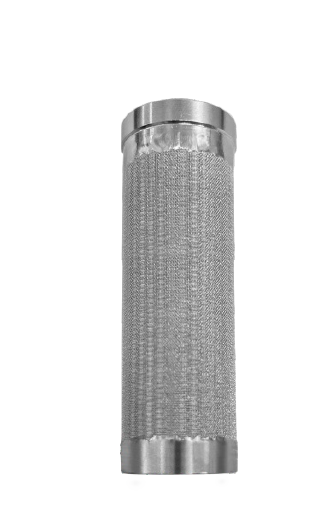

LCP-000070

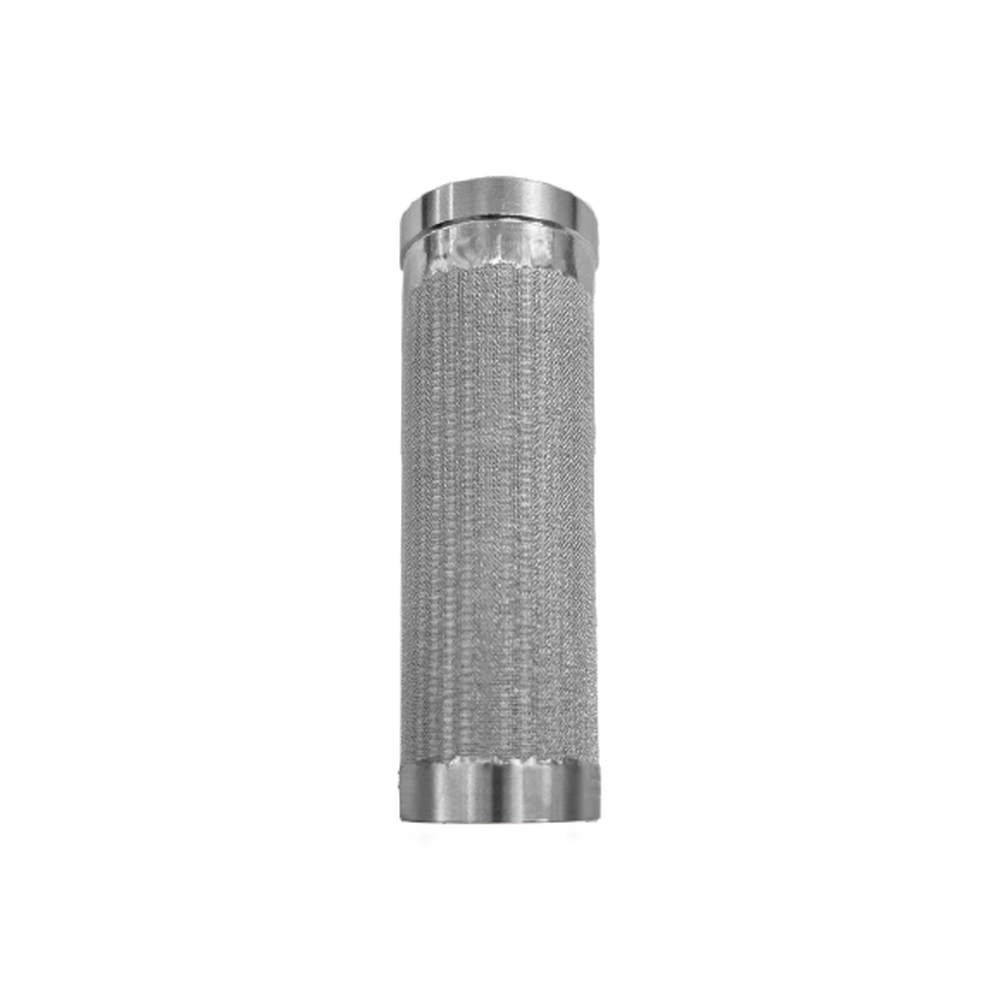

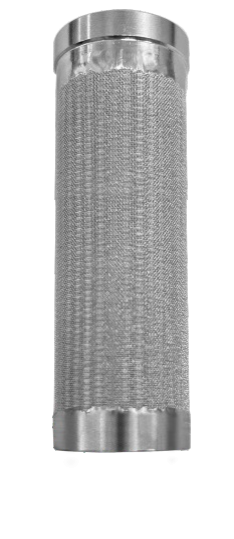

A removable rigid sintered-metal filter element shown separately in the FH catalogue. The five-layer construction and surface appearance distinguish it from the…
Specify with confidence
Particle-control objective and required rating method Coolant, wetted material and connection Flow and clean/loaded pressure-drop limits Service access, element replacement and cleanliness Quantity and required inspection documents
Filters and strainers are chosen around particle-control objectives and maintenance access. Mesh count and micron rating should not be treated as interchangeable without a stated rating basis.
Define fluid, target cleanliness, flow and allowable clean or loaded pressure drop. Specify connection, element service method, materials and the test or documentation basis of the filtration rating.
Include the drawing or specification revision and identify any requirements that are still to be confirmed. Available configurations, testing and documentation are confirmed with quotation.
Local editorial preview
Manufacturer examples retain their model and conditions. These references describe source products, not approved stock or supply. Images are pending final selection and rights review.
| Parameter | Documented value / configuration |
|---|---|
| Function | Remove impurities to protect valves and equipment. |
| Interface | DIN/ISO welded; clamp |
| Wetted material | Stainless-steel strainer family; full wetted-material list not stated on page. |
| Maintenance | Page describes efficient discharge and easy maintenance; procedure and interval require the datasheet. |
| Test conditions | media: water with up to 50% ethylene glycol; nominal pressure: PN10; temperature: -10°C to 100°C; test standard: GB/T 13927 |
| Parameter | Documented value / configuration |
|---|---|
| Wetted material | stainless steel body; stainless steel screen; EPDM seal with optional FKM |
| Parameter | Documented value / configuration |
|---|---|
| Body material options | 316 stainless steel or brass; distinct material configurationsConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Filter element material | 316 stainless steelConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Filter element types | Sintered element or woven wire meshConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Sintered nominal pore options | 0.5, 2, 7, 15, 40, 60, 80 micrometreConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Mesh nominal pore options | 100, 150, 250, 450 micrometreConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Nominal rating basis | Catalog note: 95% removal of solid particles larger than nominal pore size; not an absolute ratingConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Service arrangement | T-shaped body with replaceable filtering elementConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Pressure temperature selection | Use material-specific pressure-temperature curve; maximum pressure and maximum temperature are not simultaneousConditions: Attributed manufacturer series/configuration example only; not site stock or capability; scope: FT series catalog only. Element size and material must match the selected order code. Nominal micron choices are not universal mesh conversion or proof of coolant compatibility. |
| Parameter | Documented value / configuration |
|---|---|
| Documented construction | Compact straight-through particulate filter for gas or liquid; removable filter element and end-connection choicesConditions: scope: Manufacturer series; depicted unit does not fix an order code or coolant suitability |
| Filtration area designations | 2, 4 and 8Conditions: scope: Catalog area designations, not square-inch values or a common bore |
| Manufacturer max working pressure | up to 207 barConditions: scope: Series maximum; body material, temperature and actual ordered configuration control |
| Listed temperature span | -28 to 482 degCConditions: scope: Catalogue span; not rated at 207 bar throughout and not a coolant compatibility claim |
| Listed element types | Sintered 316 stainless and woven 316 stainless screen elements; nominal aperture choices are element-dependentConditions: scope: Do not combine all nominal aperture codes with all area or body options; selected filter code required |
| Listed body material options | 316 stainless steel or brassConditions: scope: Manufacturer order variants; brass and stainless pressure-temperature curves differ |
| Listed nominal filter element apertures | The FI catalog lists nominal element apertures of 0.5, 2, 7, 15, 40, 60, 80, 100, 150, 250 and 450 micrometres; availability depends on sintered versus woven-screen element and filter-area designation µmConditions: scope: Manufacturer series options, not a single product's rating; nominal aperture is not an absolute capture claim. FI area designation 2 does not offer the woven-screen element |
| Parameter | Documented value / configuration |
|---|---|
| Documented construction | Compact inline particulate filter with full-penetration weld between body and element; back-flushing is describedConditions: scope: Manufacturer series; cleaning procedure and exact configuration must be confirmed |
| Manufacturer max working pressure | up to 414 barConditions: scope: Series maximum; not a simultaneous maximum-temperature duty or site supply rating |
| Listed temperature span | -28 to 482 degCConditions: scope: Catalogue span; pressure-temperature diagram and chosen end form govern |
| Listed body material | 316 stainless steelConditions: scope: Manufacturer standard material; full wetted-material review still needed |
| Documented end connection examples | Twin-ferrule tube fittings, female or male NPT threads, and metal face-seal end forms in the ordering tableConditions: scope: Examples in source table; order-code combinations are not freely interchangeable |
| Element selection boundary | The catalog lists a sintered 0.5 micrometre nominal option; other listed apertures use screen elementsConditions: scope: Nominal rating and material must be chosen with a specific filter order code; do not infer absolute capture |
| Parameter | Documented value / configuration |
|---|---|
| Construction and service | Bypass-style body for sample/cleaning access with a replaceable filter elementConditions: scope: FB family description; individual line and bypass ports depend on order code |
| Listed body materials | 316 stainless steel or brass body options; pictured reference is metallic but material is not determined from the photoConditions: scope: Material options are not interchangeable without coolant compatibility review |
| Published series limits | Up to 414 bar working pressure; -28 to 482 °C listed series temperature envelopeConditions: scope: Series upper envelopes only, not a rating for any coolant or completed assembly; select actual material, seal and element |
| Element choices | Sintered or mesh 316 stainless filter elements; catalogue pore choices include 0.5–450 µm depending on element typeConditions: scope: Not all pore sizes available for each element construction; choose exact element code |
| Parameter | Documented value / configuration |
|---|---|
| Construction and service | High-capacity bypass filter with bottom sampling/cleaning access and removable metal screen elementConditions: scope: FH family description; exact port and element need selected order code |
| Listed wetted materials | F316 stainless head, 316 stainless cylinder/element; FKM default O-ring with other listed elastomer optionsConditions: scope: Verify specific seal option and coolant additive compatibility |
| Published series pressure | Up to 345 bar (5000 psig) maker-published FH series pressureConditions: scope: Series upper limit; not a guarantee for every element, seal, coolant or site-supplied configuration |
| Filter area and pore options | 4H: 10.70 in² (6908 mm²); 8H: 71.50 in² (46128 mm²); catalogue nominal pore options 5, 25, 100, 150, 250 and 450 µmConditions: scope: 4H/8H are distinct element area grades; 450 µm is listed only for 8H; not all combinations assumed available |
| Parameter | Documented value / configuration |
|---|---|
| Element construction | Pleated multi-layer 316L metal woven mesh element; the pleat geometry increases filtration areaConditions: scope: FH element construction; photographed object is a reference element, not a confirmed complete order code |
| Nominal pore selection | Published FH nominal pore choices include 5, 25, 100, 150, 250 and 450 µm, subject to element form and 4H/8H sizeConditions: scope: Nominal pore rating, not absolute efficiency or an available-every-size promise; exact element code required |
| Element material | 316L stainless steel multilayer pleated metal mesh |
| Pictured housing fit | Catalogued picture is labelled for FH-8H series; exact replacement element code and pore grade still require housing match |
| Element service method | Pleated multilayer element is described as removable and cleanable for repeated service, subject to operating conditions |
| Parameter | Documented value / configuration |
|---|---|
| Element construction | Five-layer sintered metal woven-mesh element with a bonded, rigid cylindrical constructionConditions: scope: FH element-construction reference; the photographed object does not prove a specific ordered pore grade |
| Maintenance and selection | Catalogue describes a removable, cleanable metal element; select matching housing area, nominal pore grade and coolant-compatible materialsConditions: scope: Cleaning method, re-use limits and actual fit must follow selected element and housing instructions |
| Element material | 316L stainless steel multilayer sintered metal mesh |
| Pictured housing fit | Catalogued picture is labelled for FH-4H series; exact replacement element code and pore grade still require housing match |
| Element service method | The catalog describes the multilayer sintered element as cleanable for repeated service, subject to operating conditions |
| Parameter | Documented value / configuration |
|---|---|
| Pictured configuration | FQ1011N-06-HX50 is legible on the pictured filter housing label. |
| Port connection | 06 code: Rc3/4 threaded ports |
| Housing o ring | N code: NBR |
| Housing material | SUS304 upper cover and outer body |
| Filter element | Cotton-fiber element, HX50 code, nominal 0.5 µm rating; L250 element length for FQ1011 body. |
| Housing label max pressure | 1.0 MPa as printed on the pictured housing labelConditions: scope: pictured housing label; not a whole-loop rating |
| Parameter | Documented value / configuration |
|---|---|
| Mounting | BR locking end for retention in a flat-bottom metal-housing hole |
| Part diameter | 11.93 mm |
| Listed micron options | 40–170 microns by configuration |
| Passageway | Screenable passageway as large as 9.60 mm |
| Body and screen material | 305 stainless body, 303 stainless pintal and 316 stainless woven-wire screenConditions: scope: Manufacturer component table; verify selected micron code and housing retention |
| Parameter | Documented value / configuration |
|---|---|
| Mounting | Press-in woven-wire screen for plastic housings or fittings |
| Part diameter | 7.92 mm |
| Listed micron options | 40–170 microns by configuration |
| Passageway | Screenable passageway 7.82 mm |
| Body and screen material | 303 stainless body with 316 stainless woven-wire screenConditions: scope: Manufacturer component table for plastic-housing press-in screen |
| Parameter | Documented value / configuration |
|---|---|
| Mounting | Flat-bottom cavity cartridge requiring a secondary customer retention feature |
| Part diameter | 9.93 mm |
| Listed micron options | 40–300 microns by configuration |
| Passageway | Screenable passageway as large as 7.56 mm |
| Body and screen material | 305 stainless body, 17-7 stainless pintal and 316 stainless woven-wire screenConditions: scope: Customer-retained cartridge; no integral press-in or locking retention claim |
| Parameter | Documented value / configuration |
|---|---|
| Mounting | Fine-grade press-in woven-wire screen for plastic housings or fittings |
| Part diameter | 2.54 mm |
| Listed micron options | 4–40 microns by configuration |
| Passageway | Screenable passageway 2.36 mm |
| Body and screen material | 303 stainless body with 316 stainless woven-wire screenConditions: scope: Manufacturer component table for plastic-housing press-in screen |
| Parameter | Documented value / configuration |
|---|---|
| Mounting | Locking-end insert for direct installation into a metal housing |
| Part diameter | 10.00 mm |
| Listed micron options | 40–170 microns by configuration |
| Passageway | Screenable passageway 9.0 mm |
| Body and screen material | 303 stainless body, 416 stainless pin and 316 stainless woven-wire screenConditions: scope: Metal-housing locking insert; separate from the 10 mm customer-retained cartridge |
2 conflicting entries remain in the research review queue and are excluded from these specifications.
