Loop position
Components used to distribute coolant within or directly around the rack.
Component selection
58 local draft records. Includes unfinished records and Family overviews. Draft · Noindex. Reference configurations are not approved stock. Image public-use review remains separate.
Show content-ready draftsLCP-000106
A single FND valve half with a 90-degree barbed hose outlet, supplied as an interface choice for a matched interlocking pair. The…
LCP-000099
A supply-and-return water manifold in one basic-layout assembly, with selectable branch flow-switch and valve stations. The photographed configuration represents the PF3WB series,…
Component overview
A candidate family page for rack or equipment interfaces with controlled alignment.
LCP-000092
A conductive, braided leak-sensing cable documented for liquid-cooling equipment. The manufacturer identifies the MA1YHZ0102(1.0) reference and an operating temperature range of -40…
LCP-000024
An individually pictured braided metal hose assembly with paired sanitary-style ends, supported by Penflex's data-center brochure for construction, configuration, cleaning and testing…
LCP-000113
A compact node-level distribution layout with two separate corrugated connection legs. The maker's GB200 column lists two branches and a narrow 431.6…
Component overview
A candidate family page for requirements-led quick-disconnect configuration.
LCP-000051
An actual photographed group of formed 304 stainless CDU pipework examples with bends, welded interfaces and flanges. Tube size, route, pressure duty…
Component overview
A candidate family page for drawing-led routed assemblies and agreed end-of-line validation.
Component overview
A candidate family page for drawing-led manifold bodies, attached components, and assembly validation.
LCP-000079
A normally closed, electrically actuated two-port fluid valve represented by an individual JSX series product photograph. Body, seal, port and coil are…
LCP-000054
A pictured pair of long rack-distribution bars with repeated connectors. Haiwu describes double-row welded manifolds for multi-plug liquid-cooling connections.
LCP-000071
A single long metal header with a row of individually formed takeoffs, shown in a clear standalone manufacturer's photograph. It is a…
LCP-000094
A compact spot sensor combining optical and electrode detection, with RS485/MODBUS-RTU output. The documented XW-DC-01A uses a DC 9–30 V supply and…
LCP-000039
A separate photographed black rubber hose assembly with metal swaged, male-thread-looking ends. The manufacturer liquid-cooling sheet documents peroxide-cured EPDM and ordering color…
LCP-000043
A photographed group of complete black EPDM hose pieces with metal clamp-style ends and visible 202 EVOLUTION hose marking. The 202AA hose-stock…
LCP-000114
A compact common header with five branch positions and corrugated end legs. The manufacturer's Rubin table column lists a 432.8 × 139…
LCP-000075
A pictured corrugated stainless flexible hose assembly with external wire braid and welded flange ends. Select its active length, material and flange…
LCP-000052
A complete pictured all-metal HMF hose that can be bent into a static route and retain its shape. The maker lists 316L…
LCP-000035
A photographed three-ended stainless formed tube assembly with a branch and multiple controlled bends. The manufacturer's liquid-cooling sheet documents CNC forming and…
LCP-000072
A standalone custom pipe module photograph shows a large return bend, two flexible branches and a mounting feature. The manufacturer's stainless system-pipe…
Component overview
A candidate family page for controlled tube geometry, ends, cleanliness, and testing.
LCP-000104
A separate three-screen monitor for up to four compatible flow-sensor channels. The original product photo shows the display unit alone; fluid-contacting sensors…
LCP-000093

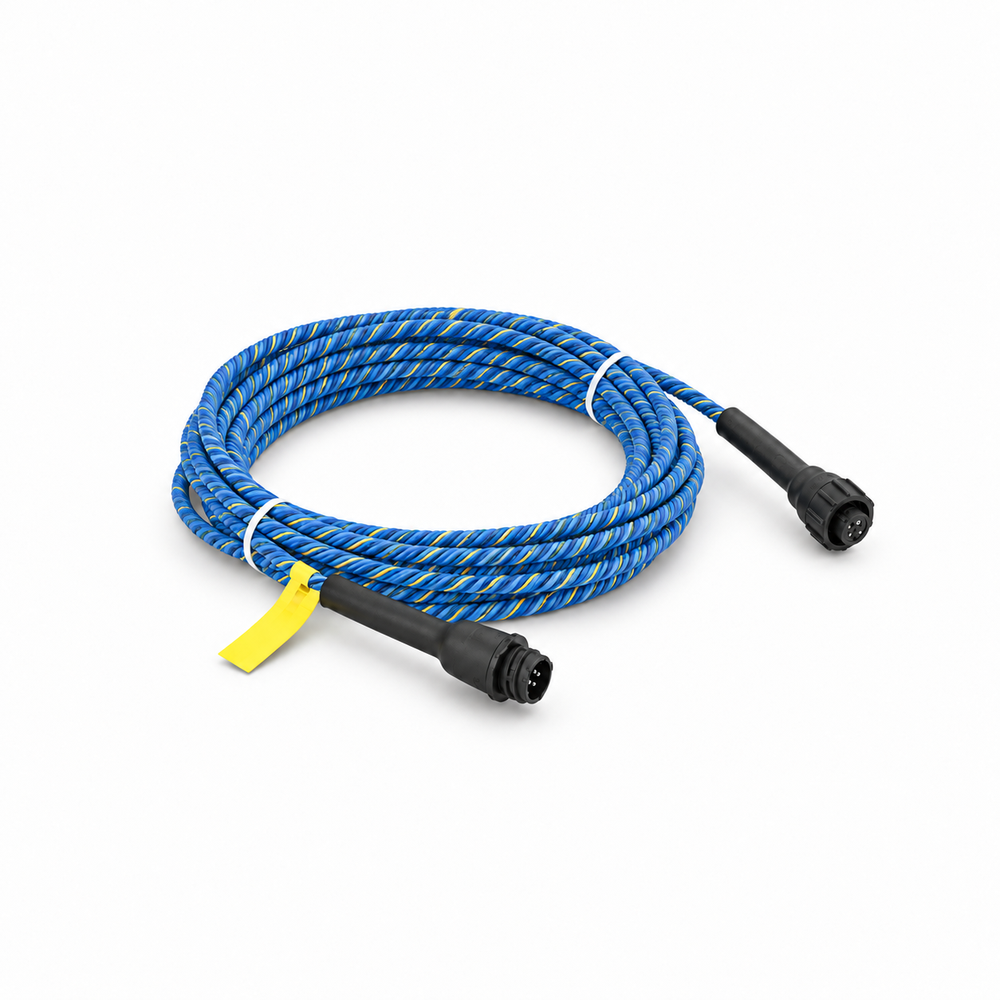

A coiled, connector-terminated leak-sensing line for use with a compatible locating controller. The documented XW-ES2-10H1 cable is 6.0 mm in diameter and…
Specify with confidence
Provide the rack envelope, port map, supply/return arrangement and service-access requirements.
Rack distribution connects equipment branches to a supply and return arrangement. Manifold position, branch count, hose routing and service access must be coordinated.
Bring a rack layout and port map, branch connection schedule, fluid conditions, inspection criteria and any monitoring or isolation devices included in the package.
Include the drawing or specification revision and identify any requirements that are still to be confirmed. Available configurations, testing and documentation are confirmed with quotation.
