LCP-000012 / Product configuration

Integrated Flow, Pressure and Temperature Sensor — FJP Series

An identifiable in-line FJP sensor with a single body for three measured variables; the manufacturer's size-specific flow rows, threads and output choices are kept separate from coolant and calibration approval.

Flow measurement principle
Hall-sensed impeller
Nominal diameter options
DN6, DN8, DN10, DN15, DN20, DN25
Dn6 listed flow range
0.5 to 10 L/min
Dn15 listed flow range
5 to 50 L/min
Dn25 listed flow range
12 to 120 L/min
Prepare inquiry requirementsBrowse categories
VOLKE FJP liquid-cooling sensor — supplier front and angled product illustrations with fluid ports and electrical connector; shown configuration only.
VOLKE FJP liquid-cooling sensor — supplier front and angled product illustrations with fluid ports and electrical connector; shown configuration only.LCIMG-000122 · Local reference image

Product imagery

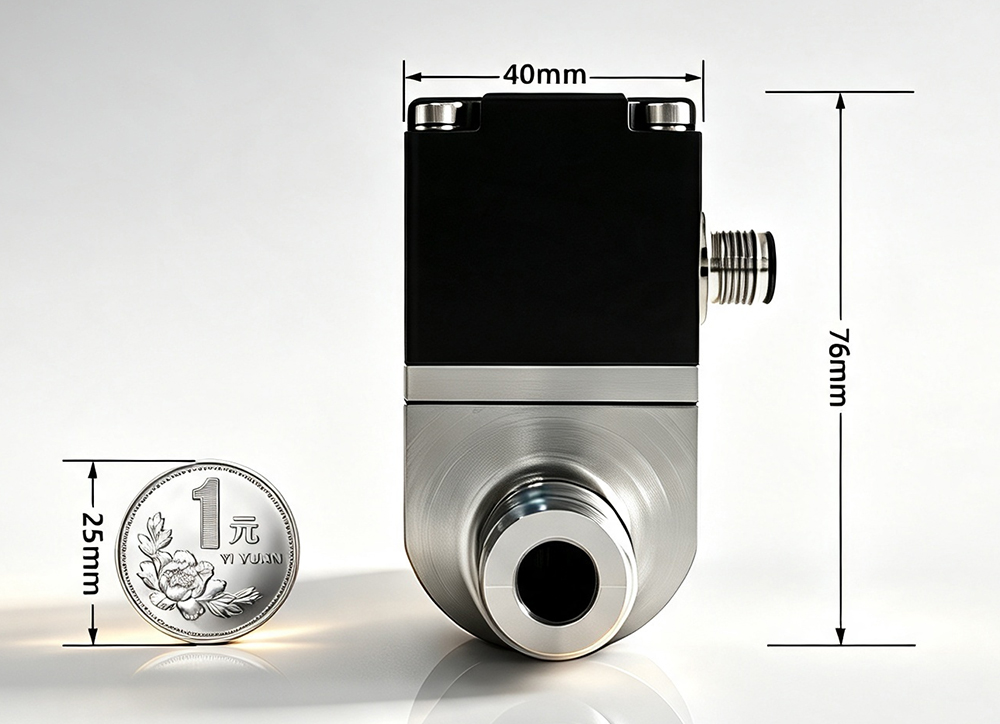

VOLKE FJP combined sensor — supplier dimensional illustration of the shown body; 40 mm and 76 mm apply only to this illustrated configuration.
VOLKE FJP combined sensor — supplier dimensional illustration of the shown body; 40 mm and 76 mm apply only to this illustrated configuration.LCIMG-000118 · Local reference image

Technical selection

Specifications and configuration

Reference — FJP

ParameterDocumented value / configuration
Measured variablesFlow, pressure and temperatureConditions: scope: single integrated housing; exact output version to be selected
Flow measurement principleHall-sensed impellerConditions: scope: supplier product description; fluid properties and calibration affect measurement
Nominal diameter optionsDN6, DN8, DN10, DN15, DN20, DN25Conditions: scope: series size options, not one universal body or flow range
Dn6 listed flow range0.5 to 10 L/minConditions: scope: DN6 row; stated flow accuracy grade 3–5 is not a guarantee for all fluids
Dn15 listed flow range5 to 50 L/minConditions: scope: DN15 row; measurement accuracy conditions require controlled manual
Dn25 listed flow range12 to 120 L/minConditions: scope: DN25 row; do not apply to smaller fittings
Listed thread optionsG1/2 for DN6–DN15; G3/4 for DN20; G1 for DN25Conditions: scope: manufacturer table; verify each order-code and mating seal
Listed temperature measurement range0 to 100 degCConditions: scope: measurement span, not a combined process-temperature or coolant compatibility rating
Listed supply voltage24 VDCConditions: scope: supplier webpage summary; wiring variant must be confirmed
Listed process interface material304 stainless steelConditions: scope: interface only, not a complete wetted-material statement
Listed output choicesThree 4–20 mA channels or RS485Conditions: scope: supplier webpage lists options; verify exact version, protocol and pinout before specifying

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

The FJP series places flow, pressure and temperature sensing in an in-line component for a liquid-cooling branch. The page covers a documented series with several bore sizes, not one universal order code with a single flow span.

Construction and interfaces

The manufacturer describes an impeller with Hall-sensed rotation for flow, combined with separate pressure and temperature sensing elements. The reference picture shows a formed body, two fluid ports and an electrical connection; exact dimensions follow the selected variant.

Selection

Choose the nominal size using the size-specific manufacturer flow table and check the corresponding thread. DN6, DN15 and DN25 rows have different flow spans; their endpoints cannot be pooled into a rating for one instrument.

Configuration options

The supplier lists RS485 and three-channel analog outputs as alternatives to clarify by order code. State the communication protocol, cable or connector, required voltage, calibration fluid and display or controller integration when requesting a configuration.

Application limits

The listed temperature value is a measurement range, not evidence that every FJP configuration is compatible with every coolant at that process temperature. The pressure range printed on the source page is malformed and is deliberately excluded pending a controlled manual.
