Component selection
135 local draft records. Includes unfinished records and Family overviews. Draft · Noindex. Reference configurations are not approved stock. Image public-use review remains separate.
Show content-ready drafts
LCP-000050
A pictured 316 stainless twin-ferrule tee with two 1/2 in. tube ports and one 1/4 in. branch. It is a reference for…
LCP-000049
A photographed 316 stainless reducing straight union with 1/2 in. and 1/4 in. twin-ferrule tube ports. It serves a different line-size transition…
LCP-000048
A pictured 316 stainless straight union with two 1/2 in. twin-ferrule tube ends. Use it as a reference for joining equal-size rigid…
LCP-000084
A higher-flow LC-series press-in non-return cartridge, distinct from a standard 558 version. The catalog lists 5.46 mm part diameter, metal-to-metal seat and…

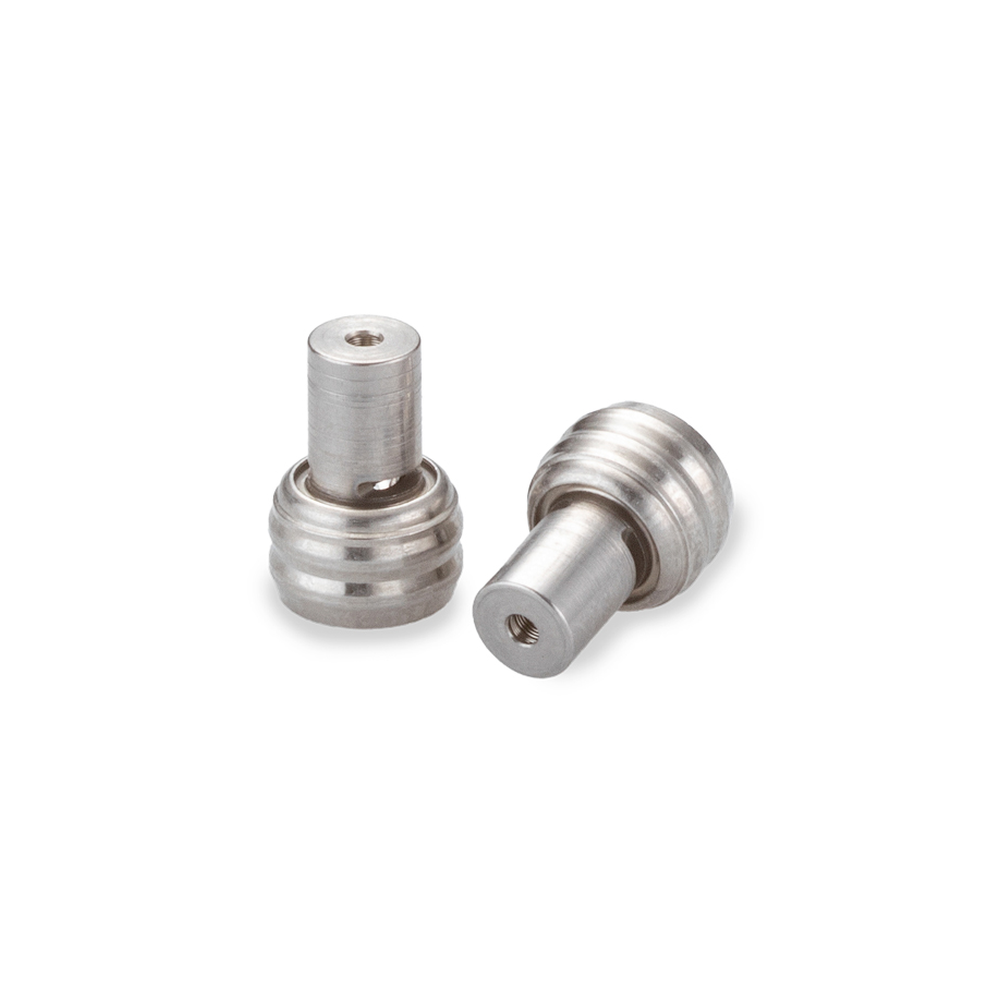

LCP-000082
A plastic-housing press-in non-return cartridge with an elastomeric seat and listed 5.94 mm part diameter. It is a different installation object from…

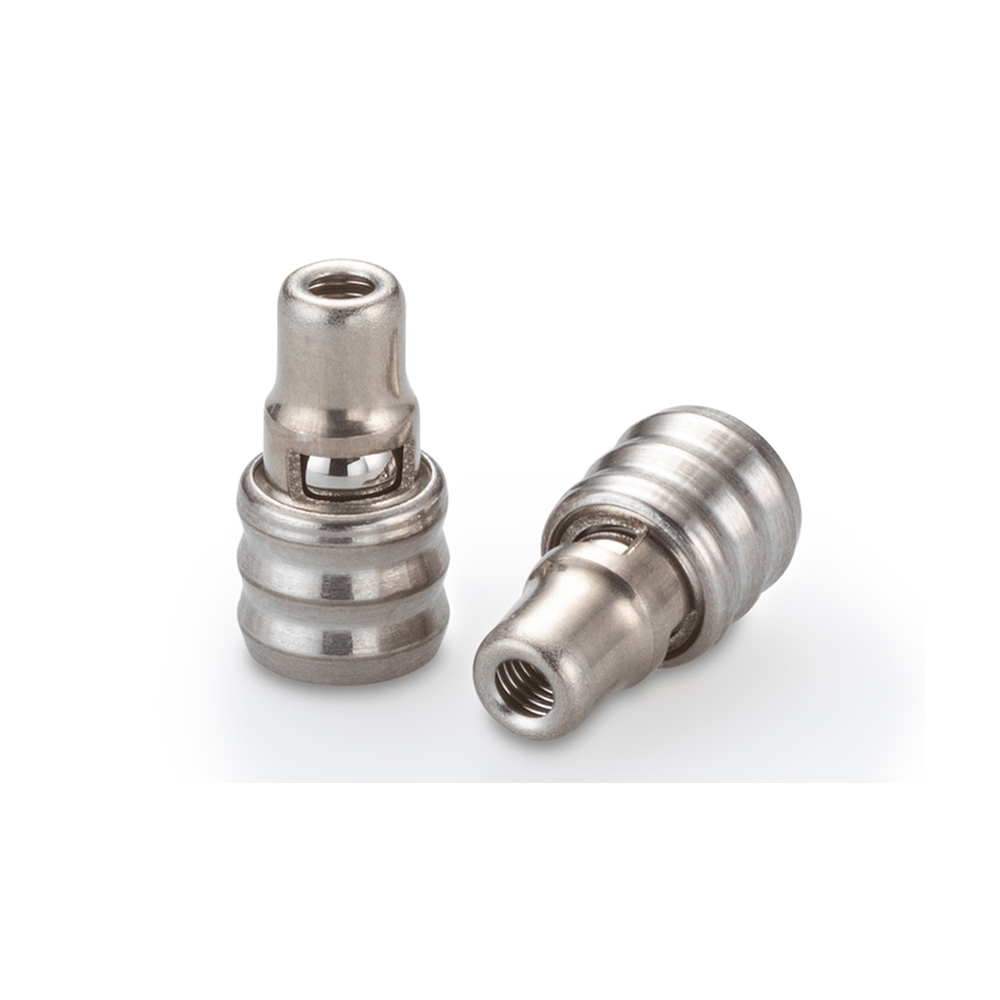

LCP-000083
A compact plastic-housing press-in check cartridge with metal-to-metal seat, 6.60 mm listed diameter and 75-Lohm catalog flow-resistance reference.

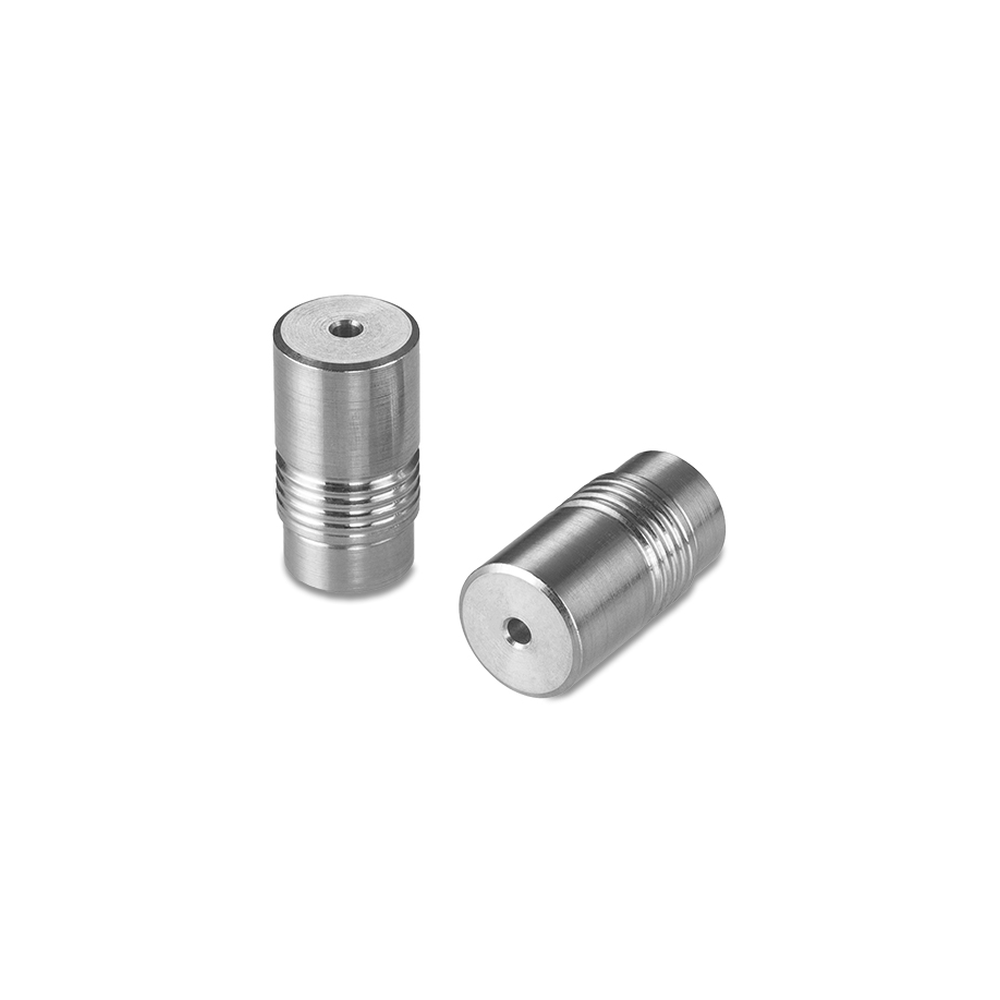

LCP-000081
A compact non-return cartridge for a metal housing. The maker's 8 mm Zero Leak family lists a 7.95 mm body diameter and…

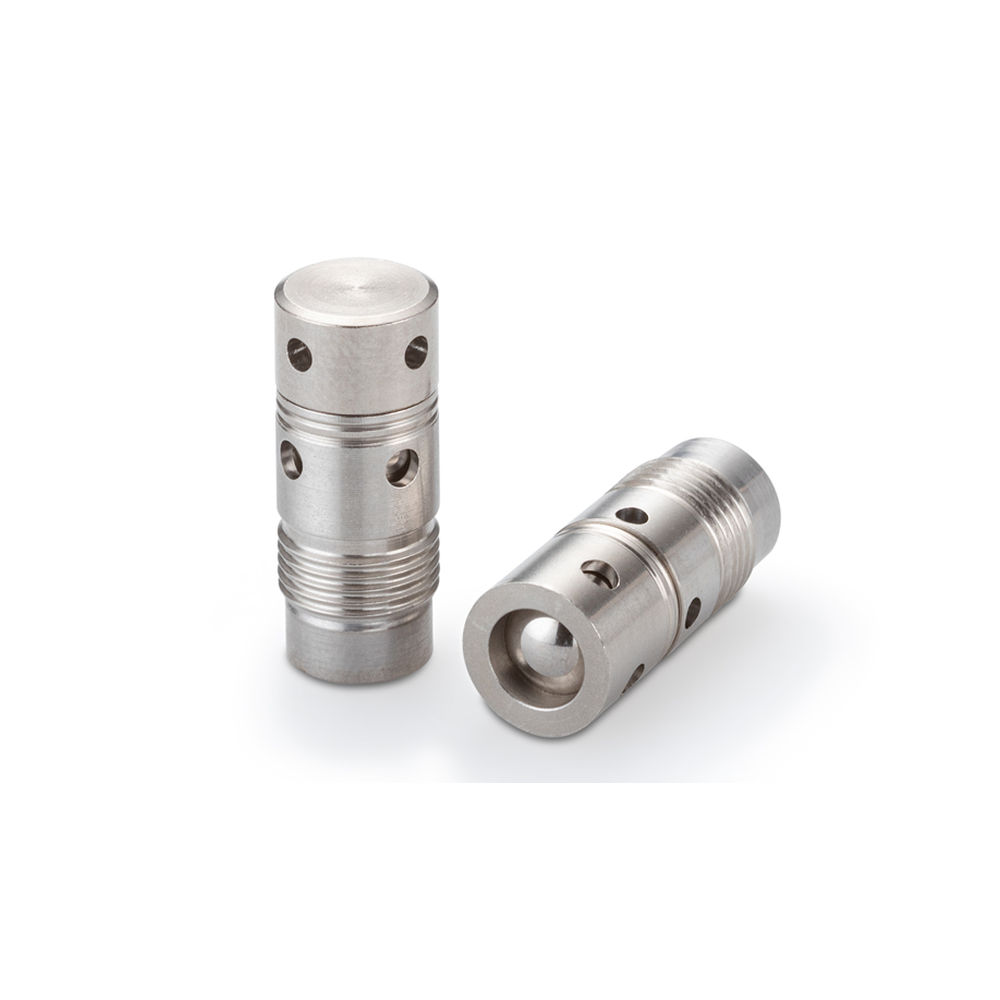

LCP-000085
A threadless metal-housing check cartridge with a side-exit flow path. The maker lists 7.95 mm part diameter and a configuration-dependent resistance as…

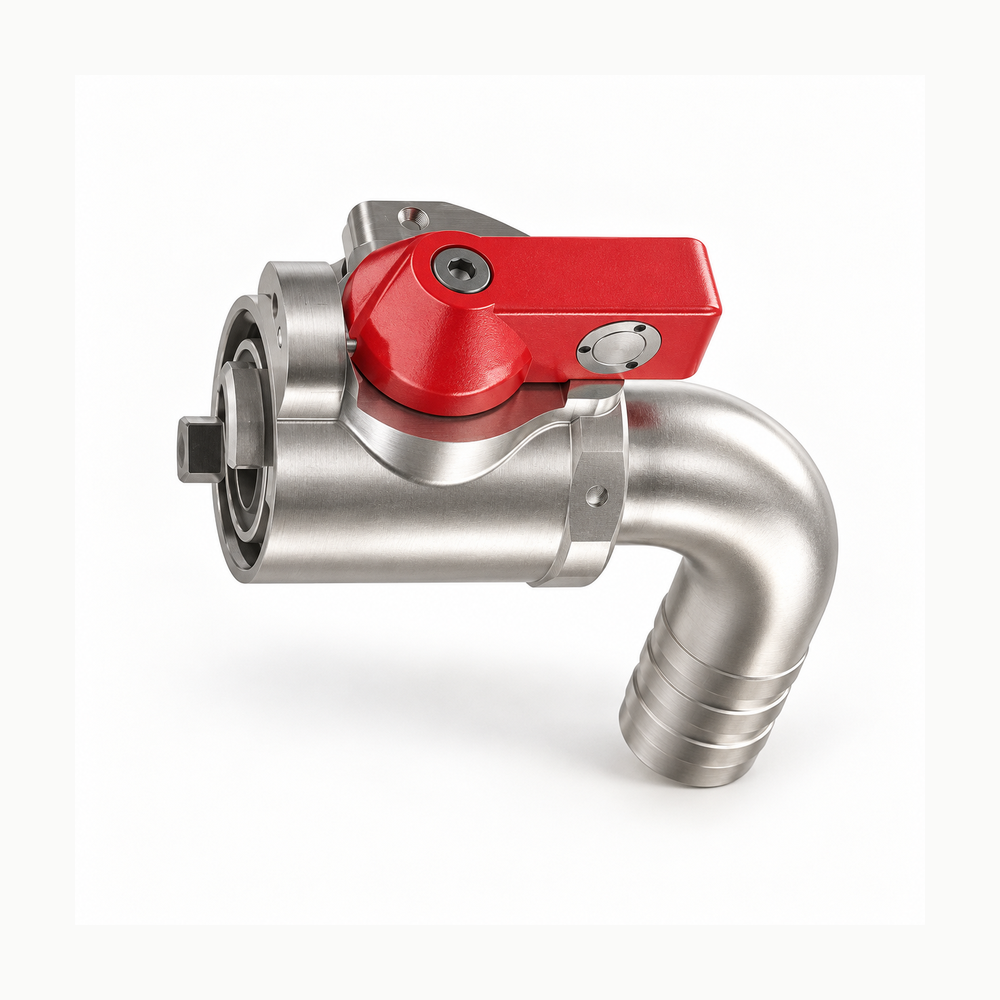

LCP-000106
A single FND valve half with a 90-degree barbed hose outlet, supplied as an interface choice for a matched interlocking pair. The…
LCP-000033
A separate 90° swivel adapter for connecting a coolant hose assembly to a rack manifold. The manufacturer table identifies the FF4514-2024-568 port,…

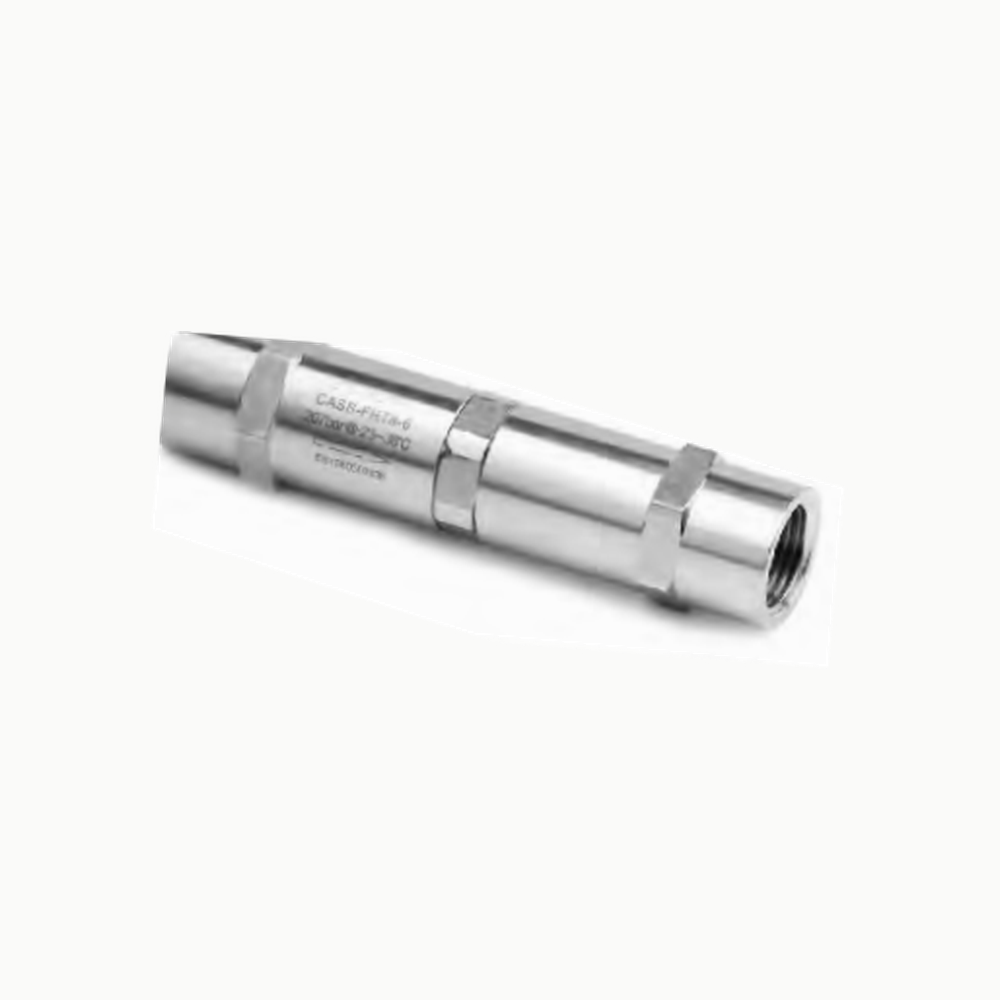

LCP-000031
An individually pictured elongated CA-series check valve for applications requiring a selected adjustable opening setting, subject to spring choice and an explicit…

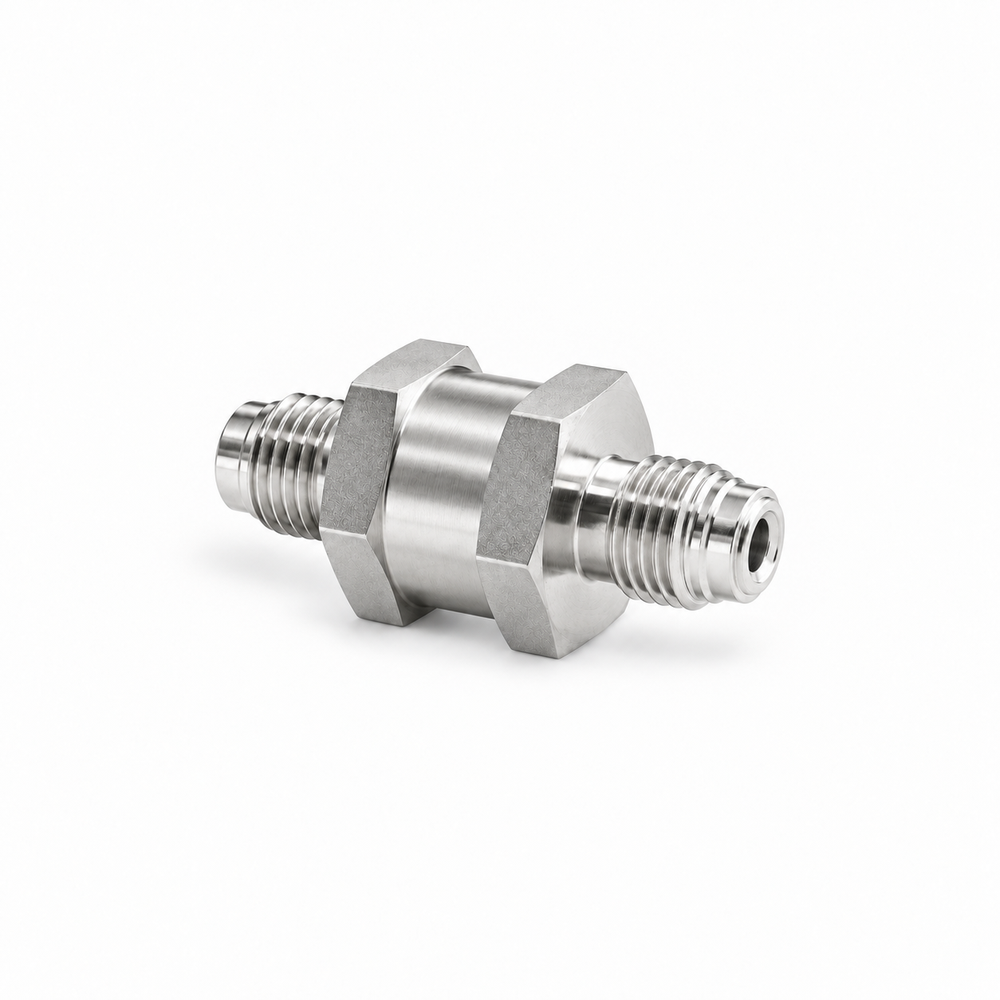

LCP-000028
A separately pictured FW-series welded inline filter with opposed male-thread ends; manufacturer evidence distinguishes its fixed element, back-flush boundary and ordering choices…

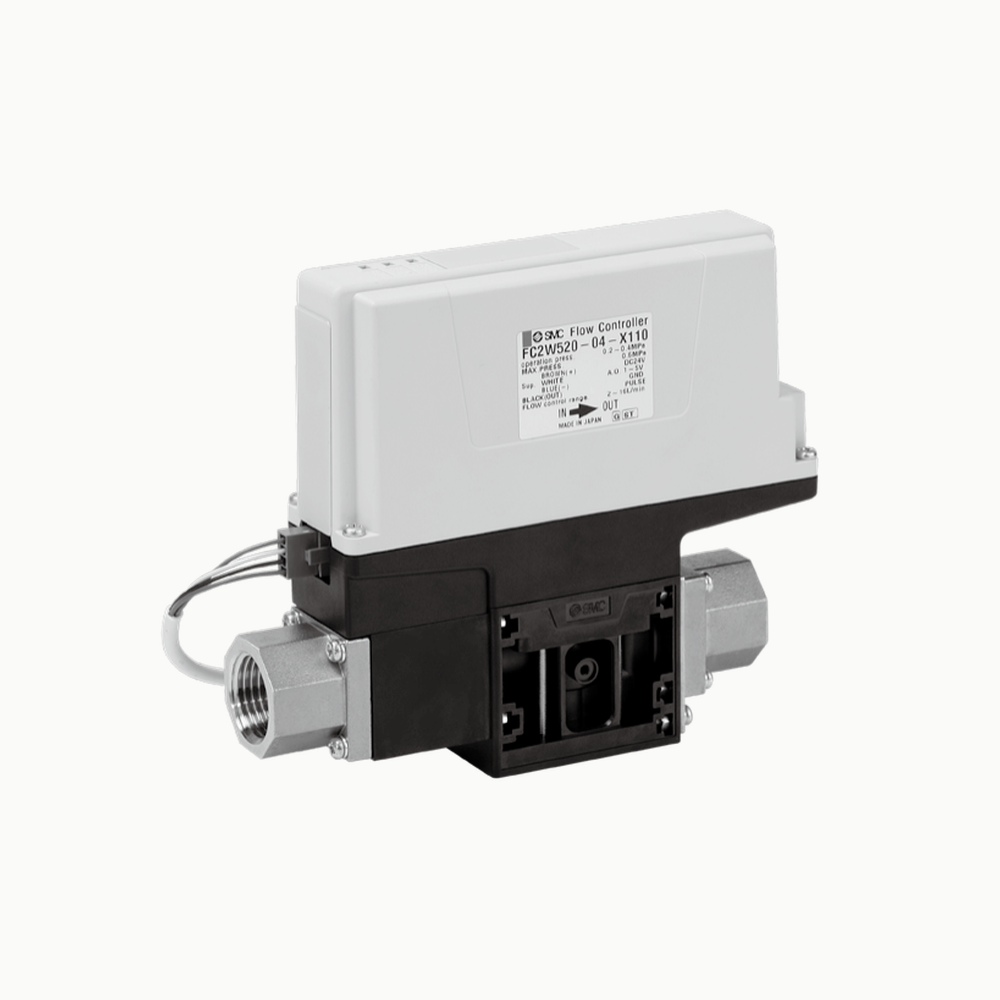

LCP-000055
An inline powered flow controller for water circuits, with a 2–16 L/min control range, Rc 1/2 ports and 24 VDC input. The…
LCP-000009
A push-to-connect, ball-locking hand-mate coupling series illustrated by a CYSL04 reference, with documented body material and size range but unconfirmed seal and…
LCP-000099
A supply-and-return water manifold in one basic-layout assembly, with selectable branch flow-switch and valve stations. The photographed configuration represents the PF3WB series,…
Component overview
A candidate family page for rack or equipment interfaces with controlled alignment.
LCP-000021
A CEJN BMQC blind-mate socket and plug with documented 5 mm nominal diameter, distinct ends and manufacturer alignment conditions that need rack-level…

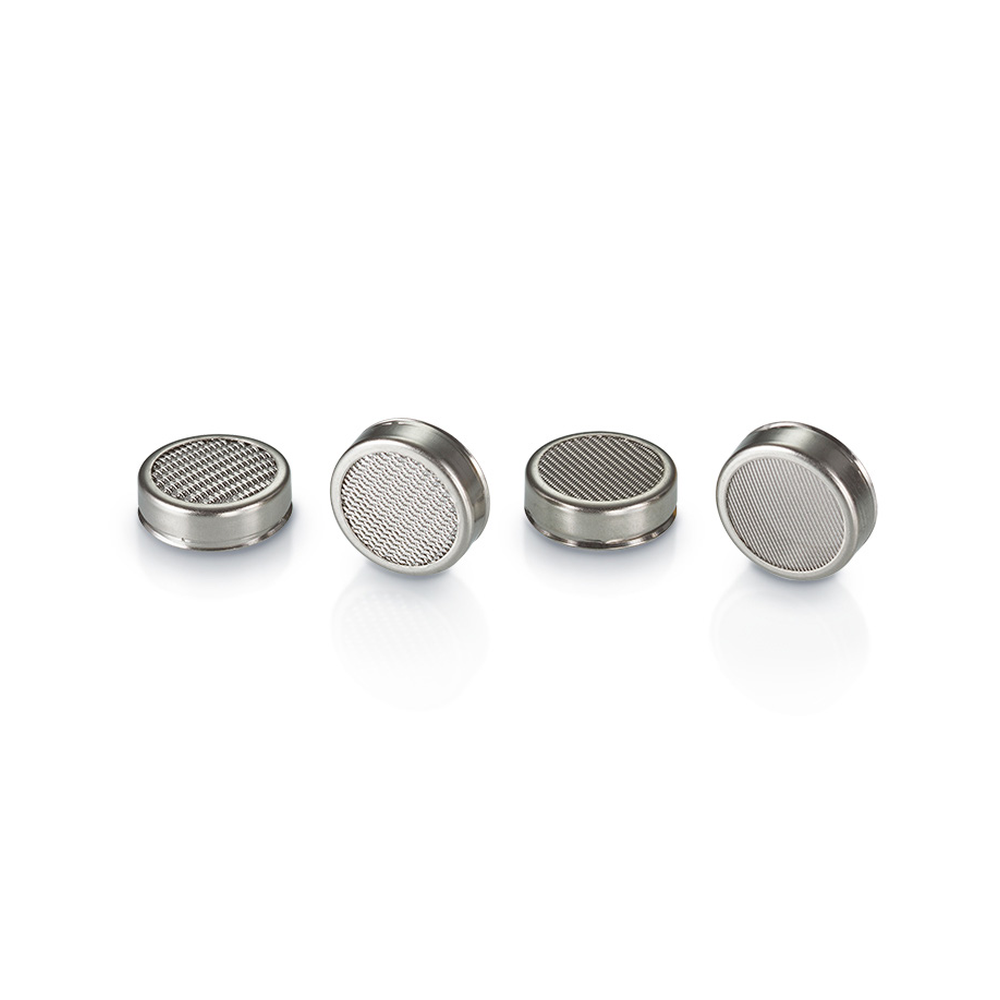

LCP-000087
A compact woven-wire last-chance screen retained by its locking end in a metal housing. The photographed BR range lists 11.93 mm body…

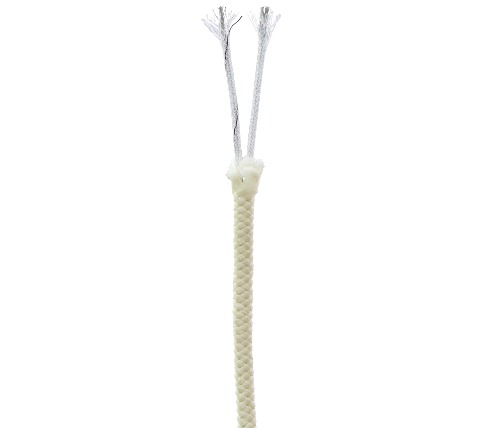

LCP-000092
A conductive, braided leak-sensing cable documented for liquid-cooling equipment. The manufacturer identifies the MA1YHZ0102(1.0) reference and an operating temperature range of -40…
LCP-000024
An individually pictured braided metal hose assembly with paired sanitary-style ends, supported by Penflex's data-center brochure for construction, configuration, cleaning and testing…
LCP-000074
An exact QP8 stem/plug half with a 3/8 in bulkhead double-ferrule tube connection and EPDM seal. The official standalone image clearly shows…
LCP-000017
A CGS direct-insertion coupling pair with an additional clamp-retention concept and size-specific hydraulic catalogue rows, shown in an official series rendering.
LCP-000113
A compact node-level distribution layout with two separate corrugated connection legs. The maker's GB200 column lists two branches and a narrow 431.6…

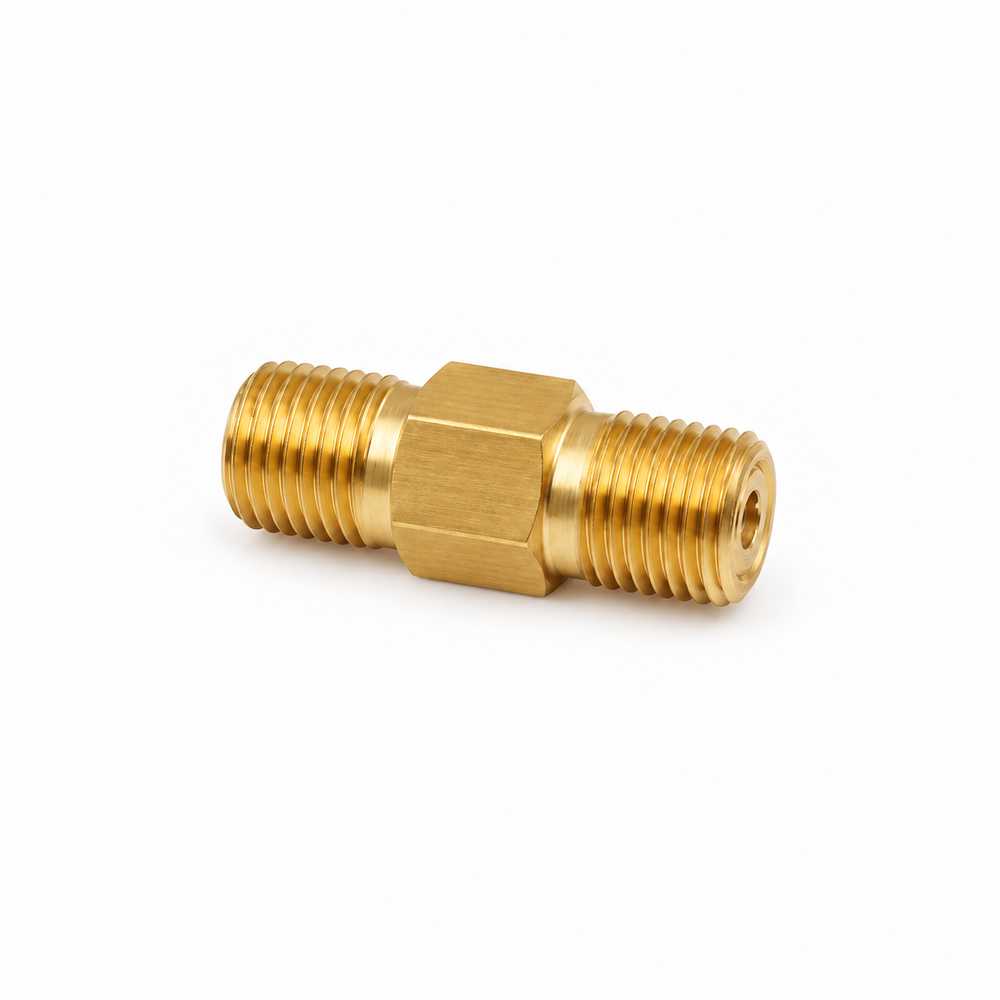

LCP-000029
A separately pictured compact CO-series one-piece check valve with threaded ends, documented fixed cracking-pressure choices and configuration-dependent pressure-temperature limits.
