LCP-000043 / Product configuration

EPDM Sanitary-Clamp Hose Assembly — 202AA / V-ZEN Reference

A photographed group of complete black EPDM hose pieces with metal clamp-style ends and visible 202 EVOLUTION hose marking. The 202AA hose-stock pressure is not the finished assembly rating.

Listed hose stock working pressure
10 bar
Hose construction
EPDM inner and outer layers with textile-cord reinforcement and embedded steel helix
Prepare inquiry requirementsBrowse categories
Multiple V-ZEN EPDM hose assemblies with metal clamp-style ends; mixed lengths and no individual finished order code.
Multiple V-ZEN EPDM hose assemblies with metal clamp-style ends; mixed lengths and no individual finished order code.LCIMG-000099 · Local reference image

Product imagery

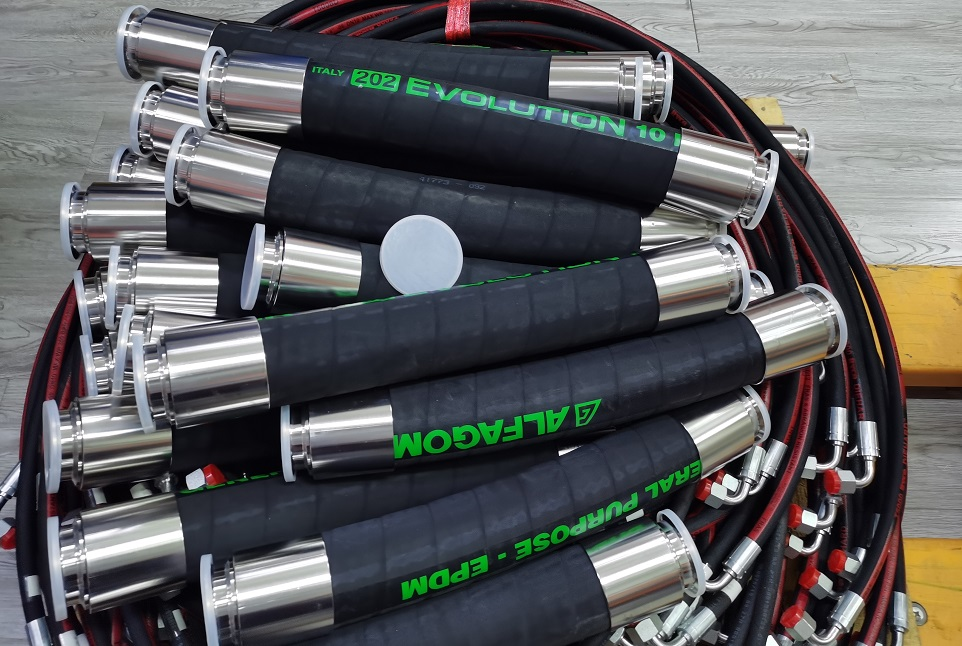

V-ZEN pictured 202AA-branded EPDM hose assemblies with stainless-looking sanitary clamp ends; multiple lengths shown, not one exact assembly order code.
V-ZEN pictured 202AA-branded EPDM hose assemblies with stainless-looking sanitary clamp ends; multiple lengths shown, not one exact assembly order code.LCIMG-000102 · Local reference image

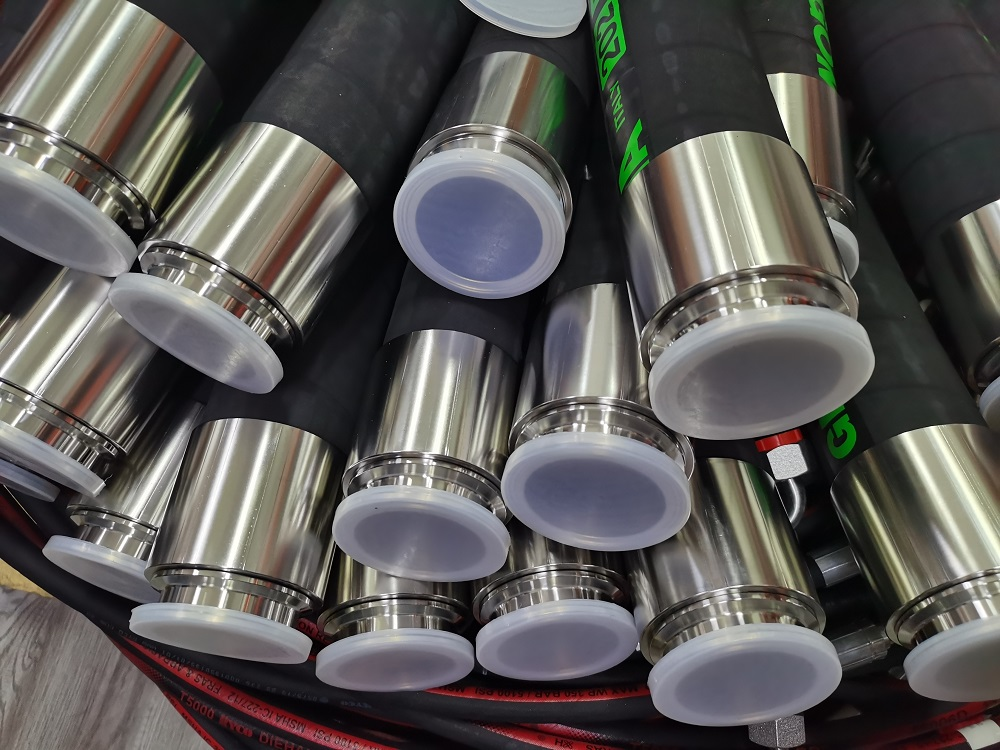

Close-up of capped clamp-style metal ends on V-ZEN EPDM hose assembly examples; exact clamp standard unverified.
Close-up of capped clamp-style metal ends on V-ZEN EPDM hose assembly examples; exact clamp standard unverified.LCIMG-000101 · Local reference image

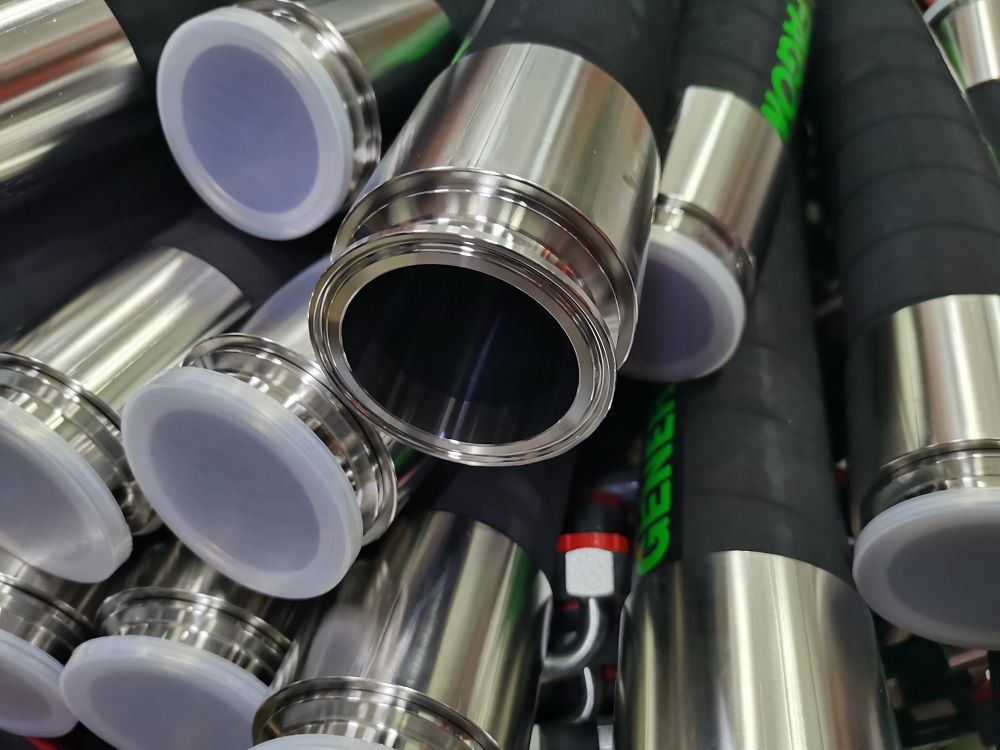

V-ZEN hose assembly clamp-end detail and protective caps, with 202-branded EPDM hose in background.
V-ZEN hose assembly clamp-end detail and protective caps, with 202-branded EPDM hose in background.LCIMG-000105 · Local reference image

Technical selection

Specifications and configuration

Reference — ALFAGOMMA 202AA hose used in V-ZEN clamp-end assembly examples

ParameterDocumented value / configuration
Hose stock identity202AA EPDM water suction/delivery hose; pictured assemblies show 202 EVOLUTION brandingConditions: scope: The photo shows several assembled lengths; no unique complete-assembly part number is published
Hose constructionEPDM inner and outer layers with textile-cord reinforcement and embedded steel helixConditions: scope: Hose-body material statement; does not establish end-fitting alloy or assembly qualification
Listed hose stock working pressure10 barConditions: scope: 202AA hose stock, not the pictured clamp-ended assembly or every hose diameter/end fitting combination
Pictured end styleMetal sanitary clamp-style ends visible on multiple completed hose piecesConditions: scope: Visual observation only; actual clamp standard, diameter, ferrule alloy and joining method need a drawing

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

The isolated main visual illustrates one complete EPDM liquid-line assembly with clamp-style metal ends. It was edited from the documented batch photograph, shown in the gallery, and does not identify a finished order code or a fixed available length.

Construction and interfaces

The page identifies ALFAGOMMA 202AA EPDM hose with EPDM inner and outer layers, textile reinforcement and a steel helix. The image shows metal sanitary-clamp-style ends; their alloy, ferrule process and clamp standard are not specified.

Selection

The supplier's embedded 202AA table lists 10 bar for the bare hose stock. Finished-assembly pressure depends on the selected end fittings, attachment method, size and test, so use the lower validated assembly limit for the actual circuit.

Configuration options

Specify the hose bore, finished length, bend route, both clamp interface dimensions, gasket, coolant, cleaning and end orientation. The image shows different physical pieces but does not define a catalog matrix of available lengths or ends.

Application limits

The page mixes 202AA and 223AA references and has a temperature-conversion issue, so no 223AA or temperature value is copied into this entry. Visual clamp identification is not proof of a named hygienic standard or coolant compatibility.
