SUS316 Male Elbow Push-In Fitting — SMC KQG2L06-02S Reference

A right-angle KQG2 fitting connecting a 6 mm nominal tube to an R1/4 male thread. The official catalogue presents a distinct elbow image and an exact order-code row.

Connection

6 mm nominal tube outside diameter × R1/4 male thread

Ordering code

KQG2L06-02S; male-thread elbow push-in fitting

Effective area

11.4 mm² effective sectional area with FEP tube

Series operating envelope

KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal parts

Technical selection

Specifications and configuration

Reference — SMC KQG2L06-02S

Parameter	Documented value / configuration
Ordering code	KQG2L06-02S; male-thread elbow push-in fittingConditions: scope: Exact catalogue row; image is series shape
Connection	6 mm nominal tube outside diameter × R1/4 male threadConditions: scope: Nominal tube OD, not hydraulic bore
Effective area	11.4 mm² effective sectional area with FEP tubeConditions: scope: Catalogue value stated for FEP tube; not flow rate
Series operating envelope	KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal partsConditions: scope: Series-level envelope; tube and seal choice may limit assembly

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

This elbow changes the tube route immediately at a threaded port, unlike a straight adapter. It is useful where a cooling branch has limited straight-run space and the bend position is controlled.

Construction and interfaces

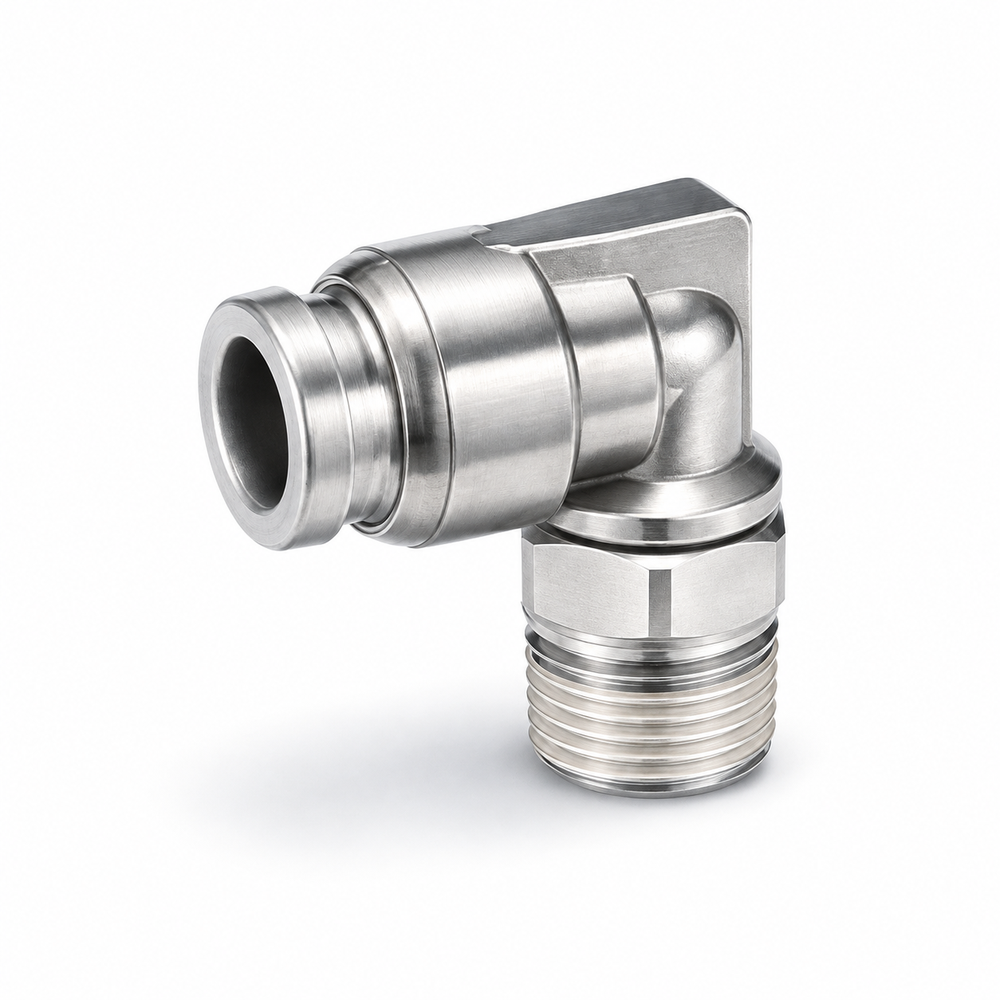

The KQG2L series shape has a push-in tube mouth and an R1/4 male threaded leg. SUS316 is listed for KQG2 metal parts; the exact visible image is a low-resolution catalogue rendering.

Selection

Confirm bend orientation, clearance for tube release, actual tube material and the mating female port. The flow path and effective area differ from a straight adapter with the same nominal tube size.

Configuration options

The catalogue lists other tube and thread combinations. Specify the approved tube OD, mating thread and required elbow orientation rather than treating size variants as the same stocked item.

Application limits

The FEP-based effective area is not a guaranteed flow capacity. Water is listed for the series, but glycol mixture, seal compatibility and installed pressure/temperature need separate checking.
