Technical selection
Specifications and configuration
Reference — SMC KQG2E06-00
| Parameter | Documented value / configuration |
|---|---|
| Ordering code | KQG2E06-00; panel-mount straight tube unionConditions: scope: Exact catalogue row; image is series shape |
| Connection | 6 mm nominal tube outside diameter, both sides; panel mounting thread M14 × 1Conditions: scope: Panel mounting thread, not a fluid port |
| Effective area | 13.1 mm² effective sectional area with FEP tubeConditions: scope: Catalogue value stated for FEP tube; not flow rate |
| Series operating envelope | KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal partsConditions: scope: Series-level envelope; tube and seal choice may limit assembly |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
This straight union anchors a tube connection through an equipment panel. It can organize a service boundary, but the panel thickness, fixing method and full piping design remain project-specific.
Construction and interfaces
The table identifies two 6 mm nominal tube connections and an M14 × 1 mounting thread. That mounting thread is not a fluid port. The KQG2 series lists SUS316 metal parts.
Selection
Check panel cut-out, thickness, mounting nut or washer, both tube materials and release access. Review the installed layout to avoid loading the fitting with unsupported tube weight.
Configuration options
Other tube diameters appear in the manufacturer's panel-mount family. Specify panel geometry and the desired tube material before choosing a different row or alternate connection design.
Application limits

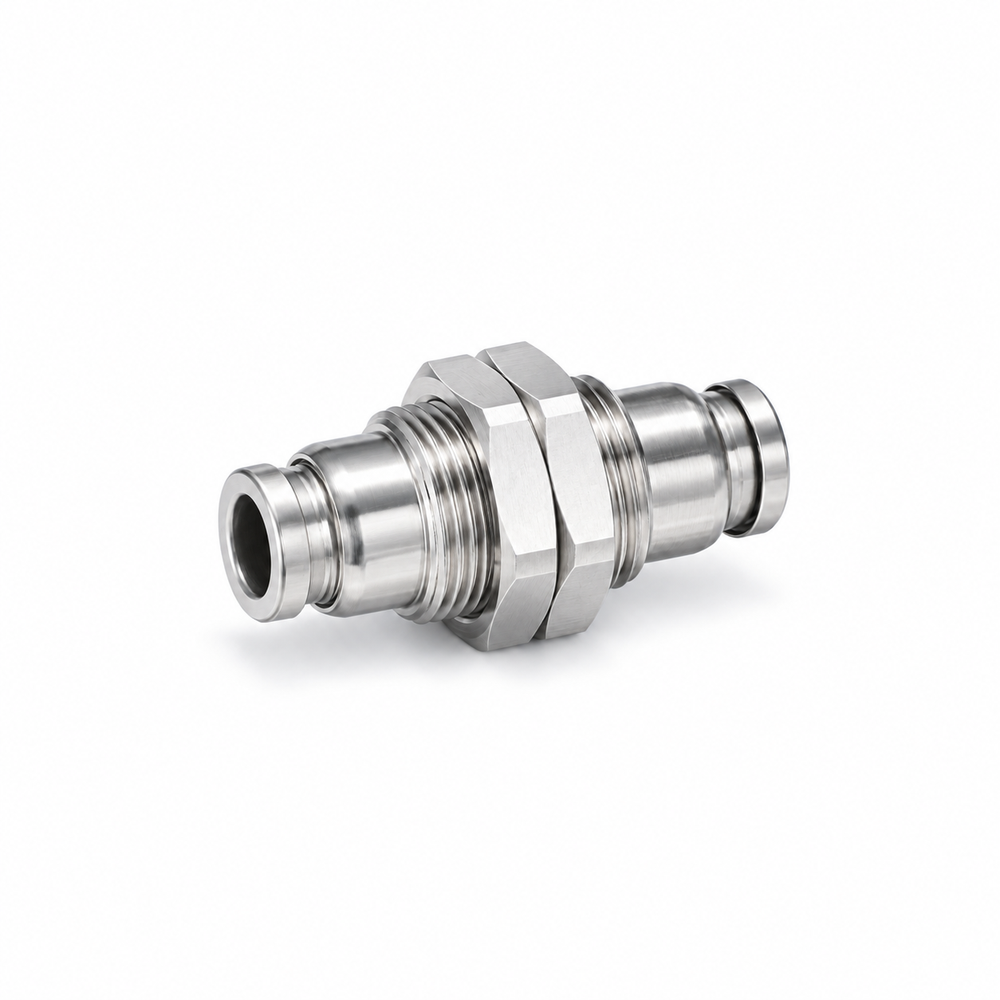

The catalogue image is a small series-shape reference. Effective area was listed with FEP tubing; the published series conditions must be checked for the installed tubing and coolant.
