Technical selection
Specifications and configuration
Reference — SMC KQG2T06-00
| Parameter | Documented value / configuration |
|---|---|
| Ordering code | KQG2T06-00; equal-size T tube unionConditions: scope: Exact catalogue row; image is series shape |
| Connection | Three 6 mm nominal tube outside-diameter connectionsConditions: scope: T branch geometry per series illustration |
| Effective area | 13.4 mm² effective sectional area with FEP tubeConditions: scope: Catalogue value stated for FEP tube; not flow rate |
| Series operating envelope | KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal partsConditions: scope: Series-level envelope; tube and seal choice may limit assembly |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
This equal-size tee creates a third tube branch without introducing a threaded device port. The three tube sockets and branch layout are its primary procurement distinction.
Construction and interfaces
All three positions accept 6 mm nominal-OD tubing according to the KQG2T06-00 table row. The KQG2 series lists SUS316 metal parts and a push-in connection design.
Selection
Map the branch's function and line direction before selection. Check tubing compatibility, service access and the actual flow split; nominal equal port size does not prove equal branch flow.
Configuration options
The catalogue lists other tube-size rows. A drain, sensor or valve branch may require an alternate interface or additional isolation, which must be defined in the full assembly design.
Application limits

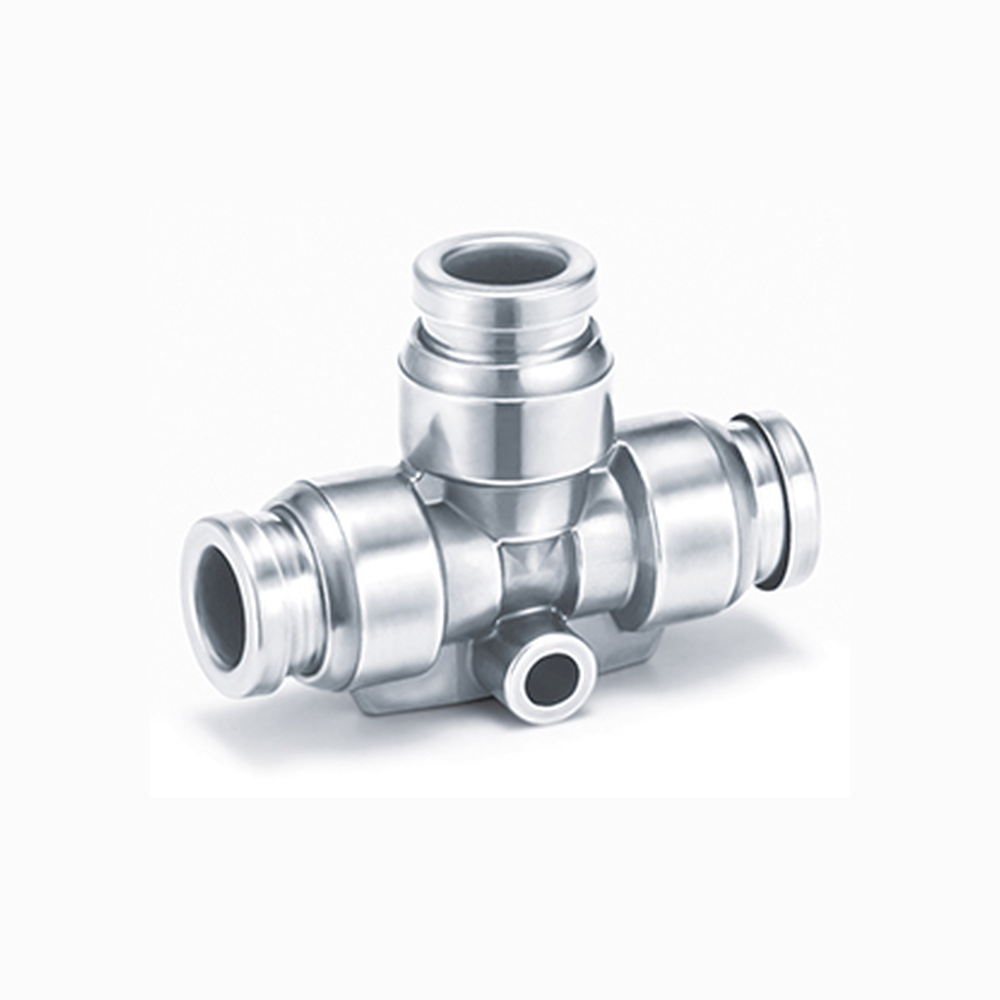

The official image is a small series-shape rendering. The effective area is listed for FEP tube conditions and must not be interpreted as guaranteed circuit flow or pressure drop.
