SUS316 Reducing Y-Tube Union — SMC KQG2U06-08 Reference

A Y-branch push-in connection joining 6 mm and 8 mm nominal tubing. SMC lists it separately from a T union and supplies a distinct Y-form catalogue image.

Connection

6 mm and 8 mm nominal tube outside-diameter connections; Y-type branch

Ordering code

KQG2U06-08; unequal Y-type tube union

Effective area

13.4 mm² effective sectional area with FEP tube

Series operating envelope

KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal parts

Technical selection

Specifications and configuration

Reference — SMC KQG2U06-08

Parameter	Documented value / configuration
Ordering code	KQG2U06-08; unequal Y-type tube unionConditions: scope: Exact catalogue row; image is series shape
Connection	6 mm and 8 mm nominal tube outside-diameter connections; Y-type branchConditions: scope: Confirm three-port assignment on project drawing
Effective area	13.4 mm² effective sectional area with FEP tubeConditions: scope: Catalogue value stated for FEP tube; not flow rate
Series operating envelope	KQG2 series: water listed; −100 kPa to 1 MPa operating range; −5 to 150 °C without freezing; SUS316 metal partsConditions: scope: Series-level envelope; tube and seal choice may limit assembly

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

This Y-form reducer combines a tube size transition with a three-port branch. The branch angle differs from the KQG2 T union and can affect routing in a confined equipment layout.

Construction and interfaces

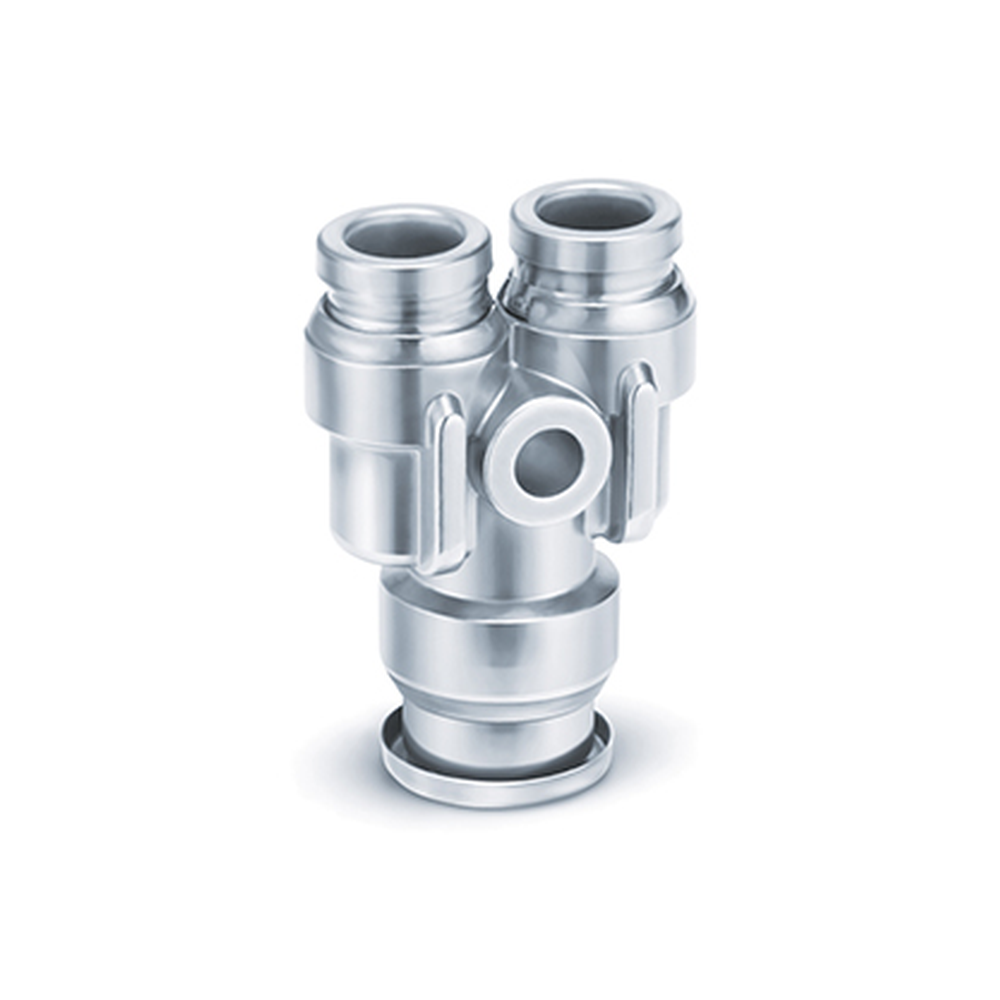

The exact KQG2U06-08 row identifies nominal 6 mm and 8 mm tubing. The small official image depicts the Y layout; KQG2 series metal parts are listed as SUS316.

Selection

Mark the three-port assignment, two tube sizes and flow direction on a drawing. The visual branch angle alone does not establish an acceptable pressure drop or orientation for the system.

Configuration options

Other unequal pairs are separate KQG2U rows. Tube material, branch routing and any additional flow control must be selected against the actual cooling loop requirements.

Application limits

The FEP-conditioned effective area is a catalogue geometry value, not a flow rating. The low-resolution series picture does not certify the exact purchased size or fitted tubing.
