Technical selection
Specifications and configuration
Reference — CYML
| Parameter | Documented value / configuration |
|---|---|
| Effective diameter options | DN3 to DN10Conditions: scope: series range; exact part needed |
| Body material | 316 stainless steelConditions: scope: body, not full wetted-material list |
| Seal arrangement | External double O-rings described for shock absorption and cushioningConditions: scope: elastomer grade and fluid compatibility not stated |
| Locking mechanism | Semi-locking hand-mate mechanismConditions: scope: manufacturer series description |
| Listed working pressure | 0 to 20 barConditions: scope: Manufacturer series summary; verify selected halves, fluid and pressure-temperature pairing |
| Listed operating temperature | -40 to +125 degCConditions: scope: Manufacturer series summary; seal elastomer is not specified by this value |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview

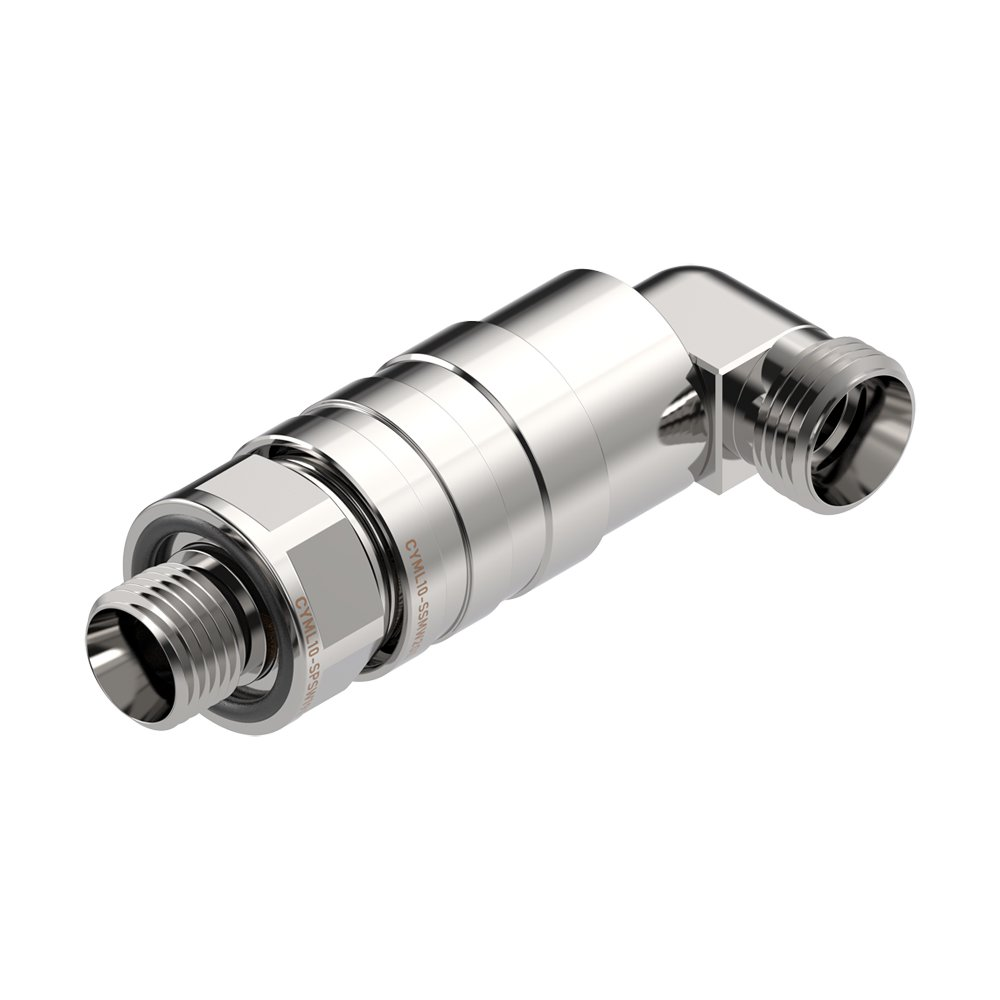

This manually engaged connection has a semi-locking retention concept distinct from full ball-lock and blind-mate constructions. The main image depicts a CYML10 reference; other sizes in the series require their own mating drawings.
Construction and interfaces
The supplier describes a 316 stainless-steel body with external double O-rings for cushioning and a semi-locking engagement. The elastomer grade, actual wetted path and end connections are not established by the photograph alone.
Selection
Confirm how the semi-lock releases and what structure provides retention under vibration, pressure and servicing. Check the paired half, installation access, coolant, operating conditions and permitted pressure drop.
Configuration options
A DN3-to-DN10 series range is listed, with exact size and connection to be chosen for the order. O-ring material, line termination and any guide or panel-mount feature must be stated separately in the RFQ.
Application limits
External O-rings do not by themselves prove a particular shock rating or chemical compatibility. Do not transfer a series photograph or an unspecified diameter range into a claim for one exact part number.
