Technical selection
Specifications and configuration
Reference — Flow Regulating Valve
| Parameter | Documented value / configuration |
|---|---|
| Function | Non-adjustable, pressure-compensating flow-regulating insert for chip/tray liquid cooling |
| Mounting options | DL series into soft metal, press-in into plastic, or hose mount into EPDM/PTFE hose |
| Regulated flow range | 0.2–4 L/min listed range; higher flows require separate manufacturer configurationConditions: scope: series selection range, not the preset of pictured sample |
| Listed materials | 303 stainless-steel body/cage; 302 stainless spring; CDA 360 brass poppet |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
A compact, non-adjustable flow-regulating insert intended to stabilize branch flow in direct-to-chip liquid cooling; it is not a manual needle valve.
Construction and interfaces
The maker lists 303 stainless body/cage, 302 stainless spring and CDA 360 brass poppet. The main image shows the valve itself; gallery cutaways show possible surrounding assemblies.
Selection
The listed 0.2–4 L/min range spans selectable versions, not one preset value. Define target flow, differential-pressure window and installation envelope before selecting a configuration.
Configuration options

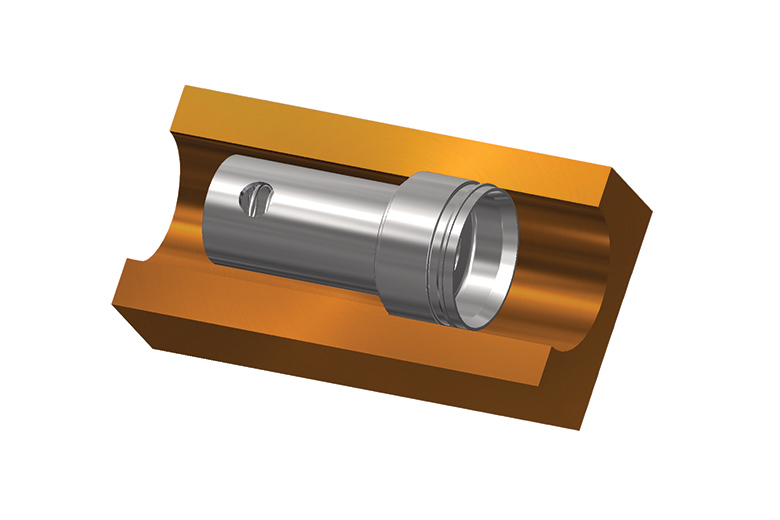

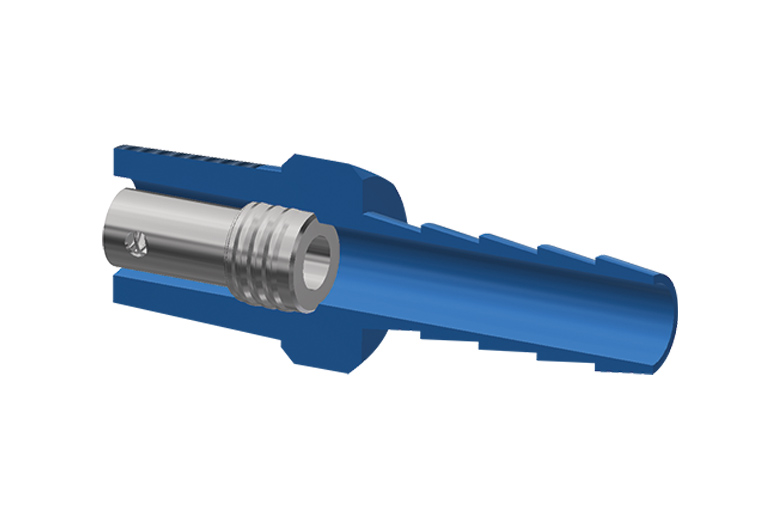

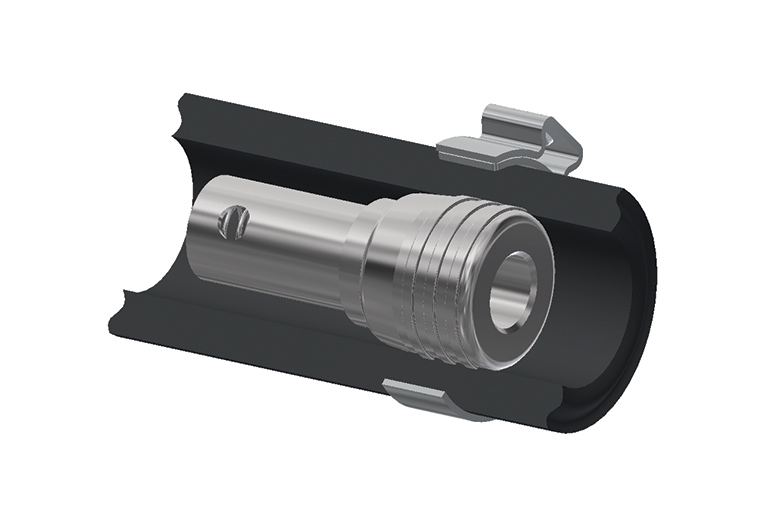

Documented installation routes include soft-metal DL mounting, plastic press-in and EPDM/PTFE hose mounting; these are integration options, not three separate pictured product models.
Application limits
Brass and other wetted materials require coolant compatibility review. No site-wide flow performance or two-phase qualification is inferred from the series page.
