Stainless Threaded or Ferrule-End Quick Coupling — CEJN ultraFLOW SC

A stainless flat-face ultraFLOW SC connector family using threaded or double-ferrule tube ends. The distinct end-connection architecture supports liquid-loop assemblies where the mating tube interface must be specified precisely.

End connection options

Stainless ultraFLOW SC is described with threaded connection or double-ferrule tube fitting ends

Nominal flow diameter options

Nominal flow-diameter options 5, 10 and 12 mm across the series

Series max working pressure range

10 to 20 bar maximum working pressure range across configurations, not one rating for every code

Main material options

Current CEJN ultraFLOW SC product page lists stainless steel and AISI 316 stainless steel as main material choices; an exact order code is needed to fix the wetted material grade.

Documented seal and temperature reference

CEJN's 2023 ultraFLOW SC presentation specifies EPDM sealing and -30 to +150 °C for the presented series configuration; verify the selected current order code and coolant before using this range.

Technical selection

Specifications and configuration

Reference — CEJN ultraFLOW SC coupling series

Parameter	Documented value / configuration
End connection options	Stainless ultraFLOW SC is described with threaded connection or double-ferrule tube fitting ends
Nominal flow diameter options	Nominal flow-diameter options 5, 10 and 12 mm across the series
Series max working pressure range	10 to 20 bar maximum working pressure range across configurations, not one rating for every code
Mating pair role	Quick-connect coupling and matching nipple form a separable liquid-cooling line connection; the SC variant includes double-ferrule tube-fitting ends in the manufacturer's described configurationConditions: scope: Series description, not interchangeability with standard ultraFLOW or proof that every order code has ferrule ends
Main material options	Current CEJN ultraFLOW SC product page lists stainless steel and AISI 316 stainless steel as main material choices; an exact order code is needed to fix the wetted material grade.Conditions: scope: Current product-page series summary, not an individual photographed part
Documented seal and temperature reference	CEJN's 2023 ultraFLOW SC presentation specifies EPDM sealing and -30 to +150 °C for the presented series configuration; verify the selected current order code and coolant before using this range.Conditions: scope: Dated technical presentation; not a current catalogue guarantee for every SC code

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

The SC version is a stainless ultraFLOW connection with selectable threaded or double-ferrule tube-fitting ends. Its end-interface choice separates it from generic hose-ended coupling listings.

Construction and interfaces

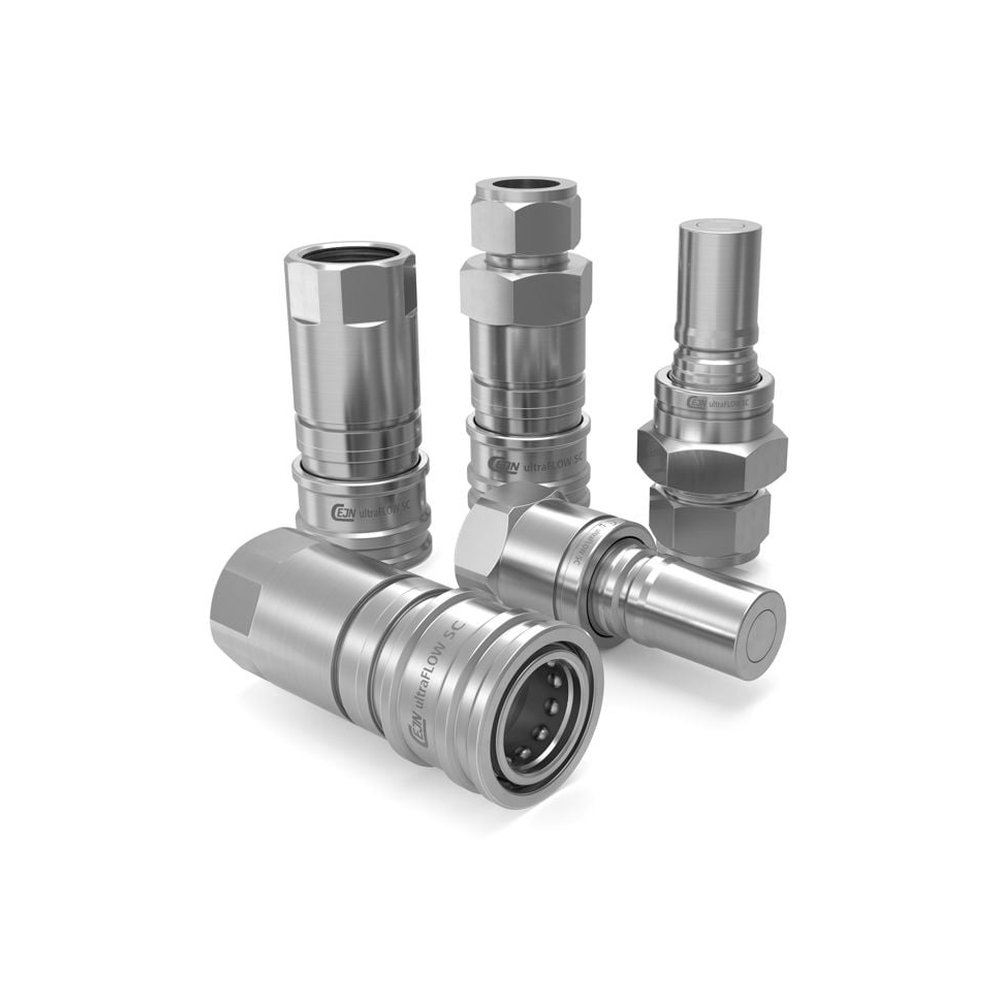

The manufacturer's photograph shows complete metallic socket and nipple examples marked ultraFLOW SC. The pictured group contains alternate end shapes, not one universal pre-assembled pair.

Selection

The maker lists nominal flow diameters of 5, 10 and 12 mm and a 10–20 bar range of maximum working pressures across configurations. Select the exact size, mating halves, end fitting and duty before using a numerical limit.

Configuration options

Thread type, tube outside diameter, ferrule details and seal configuration belong to the ordered connection. The product is described for semiconductor liquid-cooling systems; another application requires its own fluid and cleanliness review.

Application limits

The group picture does not identify an exact order code, safe full-loop pressure or interchangeability with standard ultraFLOW. Do not promise a particular flow or pressure-drop value without the selected code and conditions.
