Valved UQD08 Hose-Tail Socket — FITOK Series Reference

A visibly marked UQD08 valved socket with a hose-tail termination, shown as a complete standalone product in FITOK's original UQD catalogue. The -UQD08-MP10-B ordering basis specifies a 5/8 in hose connection; final material and color suffix must be confirmed.

Equivalent flow diameter
10 mm nominal equivalent diameter for UQD08 pair
Published series pressure
16 bar maximum working pressure; 48 bar minimum burst pressure
Standard series seal
EPDM O-ring listed as standard UQD seal
Pair flow coefficient
Cv 3.65 for socket-to-plug direction; Cv 3.70 for reverse direction
Standard body material
304 stainless steel; optional 316 / 316L
Prepare inquiry requirementsBrowse categories

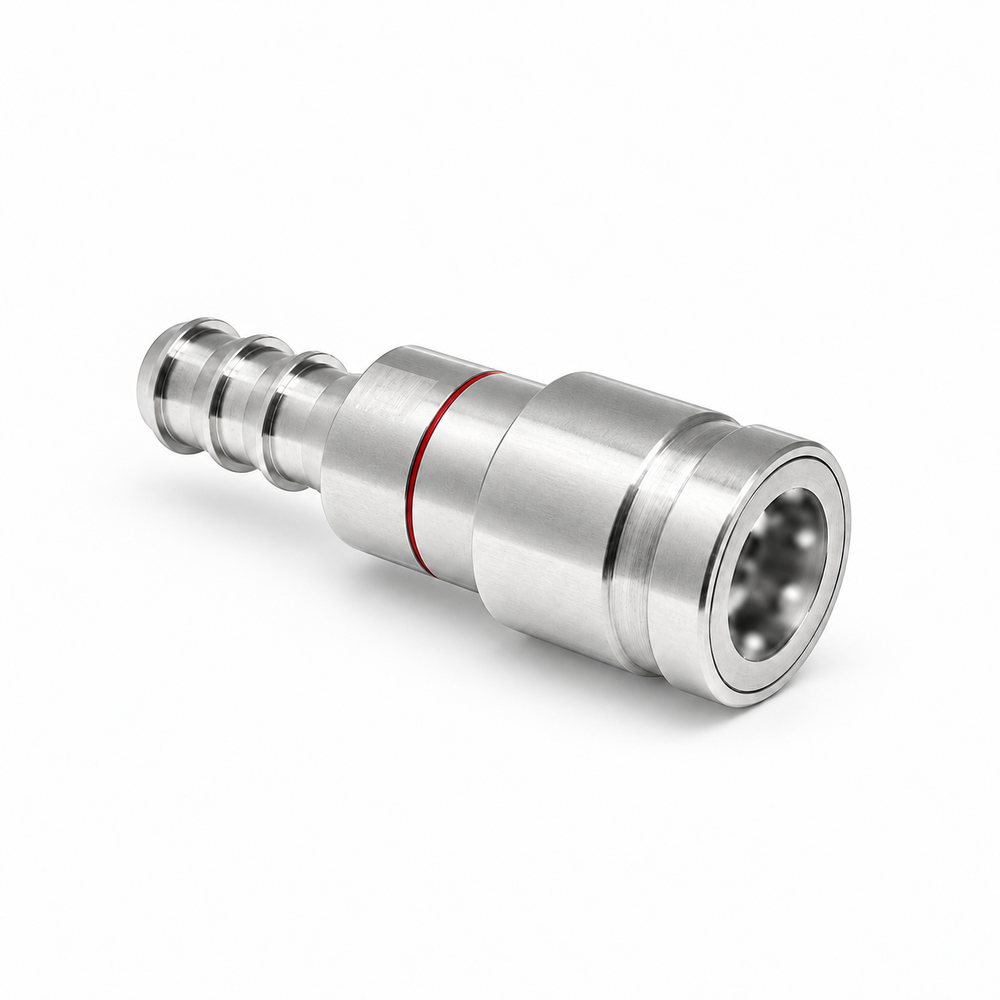

FITOK UQD08 valved hose-tail socket shown in the original UQD catalogue; series-size photograph, not a complete ordering code.
FITOK UQD08 valved hose-tail socket shown in the original UQD catalogue; series-size photograph, not a complete ordering code.LCIMG-000095 · Local reference image

Technical selection

Specifications and configuration

Reference — FITOK UQD08-MP10-B socket basis

ParameterDocumented value / configuration
Order basis-UQD08-MP10-B valved socket basis; 5/8 in hose barbConditions: scope: Basic ordering number only; material, color and accepted full order code require manufacturer confirmation
Equivalent flow diameter10 mm nominal equivalent diameter for UQD08 pairConditions: scope: Series size, not a measured diameter of isolated socket
Socket reference dimensionsL = 2.30 in (58.5 mm); L2 = 1.42 in (36.0 mm); outside D = 1.32 in (33.5 mm)Conditions: scope: Catalogue reference dimensions; maker states dimensions may change
Published series pressure16 bar maximum working pressure; 48 bar minimum burst pressureConditions: scope: Mated FITOK UQD series published data; complete hose, tail and coolant can lower duty
Standard series sealEPDM O-ring listed as standard UQD sealConditions: scope: Series standard; verify selected complete socket configuration and coolant
Pair flow coefficientCv 3.65 for socket-to-plug direction; Cv 3.70 for reverse directionConditions: scope: Mated pair with water test conditions; not isolated socket flow capacity or system flow promise

Reference — UQD02 / UQD04 / UQD06 / UQD08

ParameterDocumented value / configuration
Standard body material304 stainless steel; optional 316 / 316LConditions: scope: Catalogue values for this manufacturer series; do not combine maximum pressure and temperature into an unverified simultaneous operating point. Fluid, seal and order-code configuration must match.

Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.

Overview

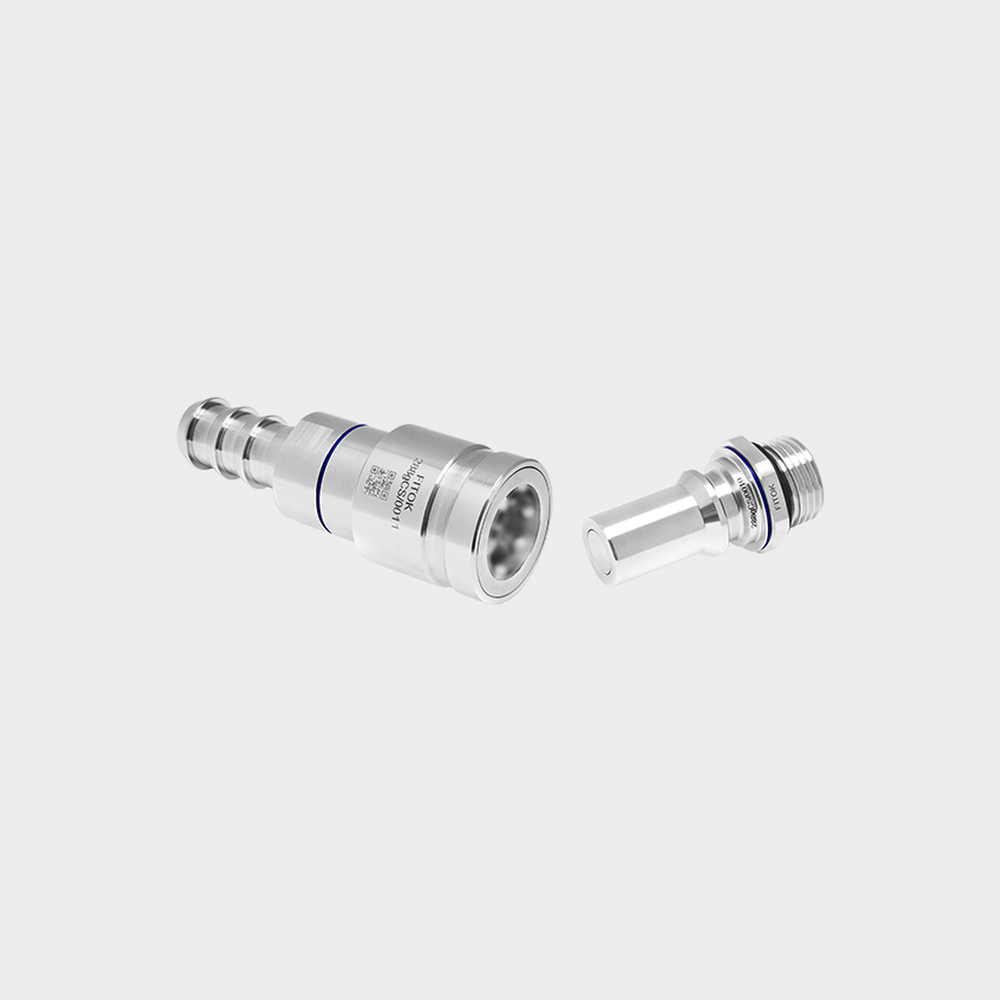

This larger UQD08 socket provides the receiving half of a manually mated liquid-loop connection. The original catalogue image shows a complete red-ring socket with a hose-tail rear.

Construction and interfaces

The ordering table identifies a valved socket basis with a 5/8 in nominal hose barb. The UQD08 designation has a 10 mm equivalent flow diameter; it is not the outside diameter of the barb.

Selection

Define the compatible UQD08 plug, hose ID and reinforcement, clamp or swage method, coolant and rack service space. Check the pair's flow and pressure drop at the intended duty.

Configuration options

The manufacturer's catalogue also lists a threaded UQD08 socket basis and different sizes. Color, material and seal choices require a validated full code; do not freely combine suffixes.

Application limits

Cv and 16 bar working pressure are maker-published mated-series references, not the capacity of this isolated socket or an assembled hose. The pictured color does not establish the final ordered code.
