Technical selection
Specifications and configuration
Reference — XW-ES2-10H1
| Parameter | Documented value / configuration |
|---|---|
| Model identity | XW-ES2-10H1 locating leak detection cable |
| Cable diameter | 6.0 mm |
| Cable resistance | 13 ohm/m |
| Operating temperature | -20 to 75 °C |
| Construction | Four conductors; two conductive fluoropolymer-covered sensing wires around a helical core |
| System interface | Used with a compatible Xiangwei locating leak controller for position reporting |
| Documented detection coverage | Liquid contact can be detected along any position of the sensing cable when connected to a compatible Xiangwei locating leak controller; the maker's tap-water alarm criterion is at least 30 mm wetted cable lengthConditions: scope: Manufacturer's tap-water reference condition only; detection of a different coolant, conductivity, cable route or controller combination requires its own test |
Manufacturer reference configuration. Values and conditions apply to the named reference; the supplied configuration requires separate confirmation.
Overview
This line senses liquid along a routed cable and is paired with a locating leak controller. It differs from a simple local spot probe because the cable and electronics are intended to report a location along the run.
Construction and interfaces

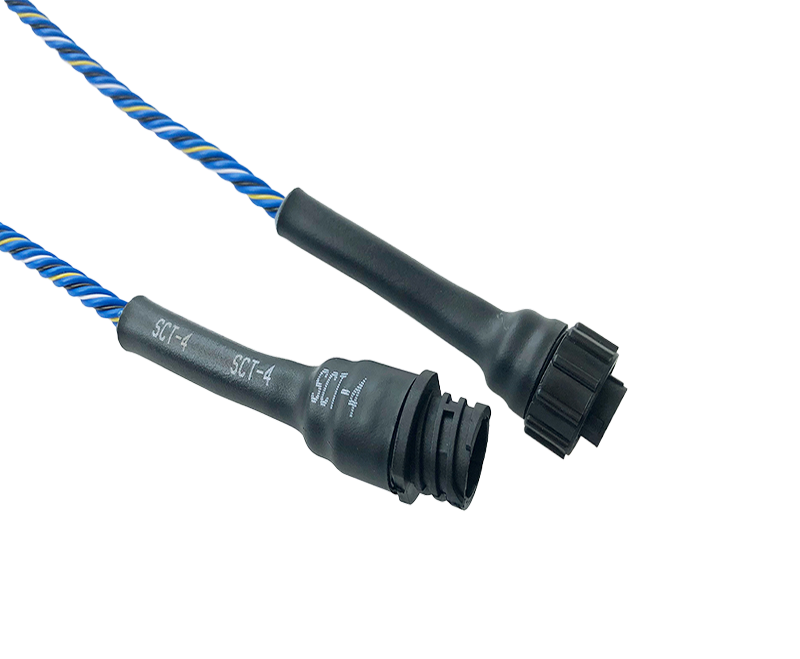

The manufacturer's pictured product is a coiled blue helical cable with connectors at both ends. The source specifies four conductors and two sensing wires with conductive fluoropolymer covering.
Selection
Match the controller and required cable length before designing a location-detection zone. The maker lists 6.0 mm diameter, 13 Ω/m cable resistance and -20 to 75 °C operating ambient temperature for this model.
Configuration options
Route length, number of zones, connector compatibility and mounting method depend on the matching control system and the intended cabinet or rack layout.
Application limits
The manufacturer's tap-water response statement and claimed certifications are not transferred into a guarantee for glycol or other coolant mixtures. Confirm sensing behavior with the specified liquid and controller.
