Technical selection
Specifications and configuration
Reference — BEEHE MGX node manifold reference
| Parameter | Documented value / configuration |
|---|---|
| Branch interface count | 19+2 branch/interface count shown in the MGX column |
| Envelope dimensions | 524.5 × 389.8 × 125.4 mm listed for the MGX column |
| Body pipe material | SUS304 body and SUS316 piping listed in the MGX column |
| Documented supply distribution mode | The maker describes the node-manifold family as generally using one supply inlet to distribute to multiple branch outlets, with branch quick connections to internal cooling devicesConditions: scope: Series-level typical routing; MGX project drawing must confirm whether a separate return manifold is included |
Manufacturer series reference. Confirm the exact order code, mating parts and stated conditions for the quoted configuration.
Overview
This node-level manifold distributes coolant among many server branch connections inside an equipment envelope. It is distinct from a two-branch tube set and a rack-length external manifold.
Construction and interfaces

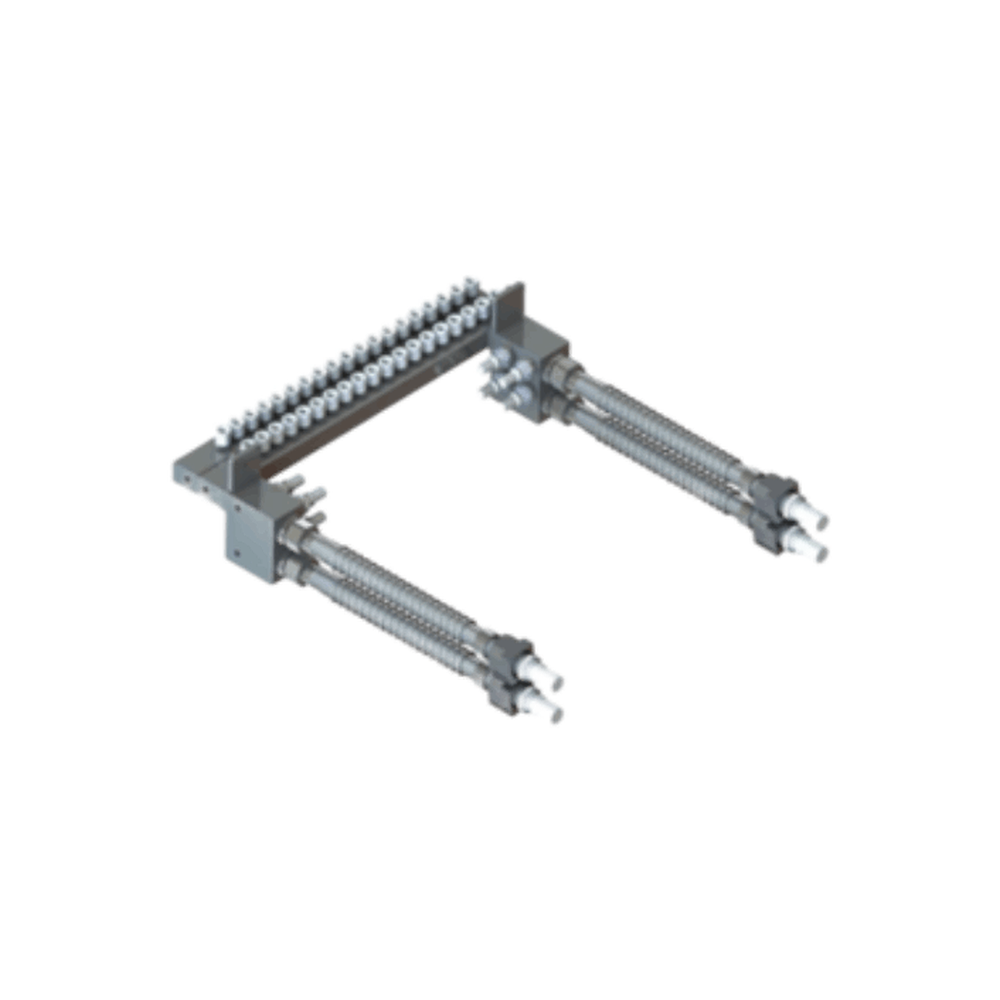

The maker's first gallery view shows a wide distribution header with repeated branch fittings and corrugated connection legs. Its MGX reference column lists a SUS304 body and SUS316 piping.
Selection
The MGX column lists 19+2 interfaces and 524.5 × 389.8 × 125.4 mm envelope dimensions. These are manufacturer reference values for that platform column, not a universal format or a guaranteed fit.
Configuration options
Define actual port map, quick-disconnect mating series, bracket and blind-mate tolerance from the equipment drawing. Other node configurations are separate procurement objects.
Application limits
The source gallery and table do not provide an order code or a dimensional drawing tying every image feature to the column. Confirm exact platform, fluid, pressure and test conditions before purchase; do not infer compatibility with all MGX implementations.
